2ZR-FE ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  REMOVAL


PROCEDURE

Hide 11401G 1.REMOVE CRANKSHAFT POSITION SENSOR

a.

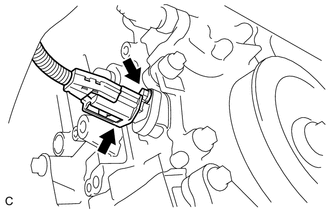

A290639

Disconnect the crankshaft position sensor connector.


b.

Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.

NOTICE:

If the crankshaft position sensor has been struck or dropped, replace it.
