2ZR-FE ENGINE CONTROL  ACCELERATOR PEDAL  REMOVAL


PROCEDURE

Hide 78110K 1.REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY

NOTICE:
·

Avoid physical shock to the accelerator pedal sensor assembly.

·

Do not disassemble the accelerator pedal sensor assembly.

·

The accelerator pedal sensor assembly does not require lubrication.

·

Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.



a.

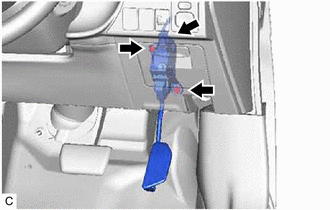

A307556

Disconnect the accelerator pedal sensor assembly connector.


b.

Remove the 2 bolts and accelerator pedal sensor assembly.

NOTICE:

If the accelerator pedal sensor assembly has been struck or dropped, replace it.
