2NZ-FE ENGINE MECHANICAL  CYLINDER HEAD  REPLACEMENT


PROCEDURE

Hide 11122 1.REMOVE INTAKE VALVE GUIDE BUSH

a.

Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).


b.

Place the cylinder head sub-assembly on wooden blocks.


c.
A301970

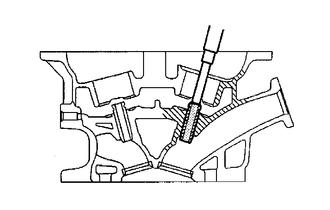

2.208,0.417 1.635,0.26 1.635,0.26 2.167,0.583 true 1.333,0.177 1.792,0.375 0.458,0.198 10 false SST

Using SST and a hammer, tap out the intake valve guide bush.

SST
09201-10000  (09201-01050)
09950-70010  (09951-07100)


Hide 11126 2.REMOVE EXHAUST VALVE GUIDE BUSH

a.

Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).


b.

Place the cylinder head sub-assembly on wooden blocks.


c.
A265776

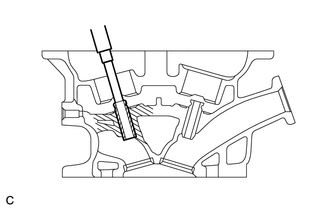

1.132,0.367 1.863,0.292 1.863,0.292 1.188,0.698 false 1.903,0.199 2.19,0.343 0.287,0.145 10 SST

Using SST and a hammer, tap out the exhaust valve guide bush.

SST
09201-10000  (09201-01050)
09950-70010  (09951-07100)


Hide 11122 3.INSTALL INTAKE VALVE GUIDE BUSH

a.
A301950

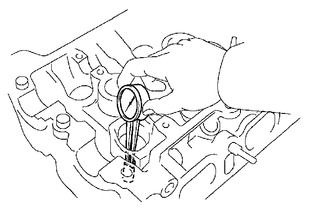

Using a caliper gauge, measure the intake valve guide bush bore diameter of the cylinder head sub-assembly.

Standard Bush Bore Diameter:

9.685 to 9.706 mm (0.3813 to 0.3821 in.)


New Guide Bush Selection Chart (STD or O/S 0.05):
Bush Bore Diameter Bush Size
9.685 to 9.706 mm (0.3813 to 0.3821 in.) STD
9.735 to 9.755 mm (0.3833 to 0.3841 in.) O/S 0.05


HINT:

If the intake valve guide bush bore diameter of the cylinder head sub-assembly is greater than 9.706 mm (0.3821 in.), machine the intake valve guide bush bore to a diameter of 9.735 to 9.755 mm (0.3833 to 0.3841 in.) to install an O/S 0.05 intake valve guide bush. If the bush bore diameter of the cylinder head sub-assembly is greater than 9.755 mm (0.3841 in.), replace the cylinder head sub-assembly.



b.

Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).


c.

Place the cylinder head sub-assembly on wooden blocks.


d.
A287313

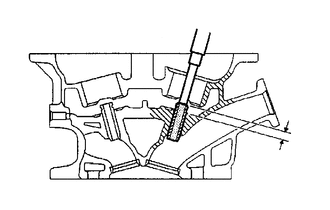

1.979,0.594 1.313,0.26 1.313,0.26 2.021,0.375 false 3.073,1.396 3.385,1.594 0.313,0.198 10 false *a 0.979,0.167 1.438,0.365 0.458,0.198 10 false SST
*a Protrusion Height


Using SST and a hammer, tap in a new intake valve guide bush to the specified protrusion height.

SST
09201-10000  (09201-01050)
09950-70010  (09951-07100)

Standard Protrusion Height:

9.0 to 9.4 mm (0.354 to 0.370 in.)



e.
A301951
2.51,0.323 2.135,0.167 false 1.979,0.073 2.292,0.229 0.313,0.156 10 false *a
*a Reamer

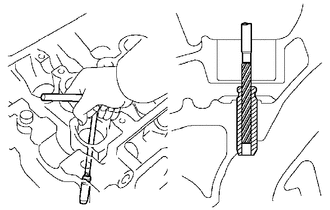

Using a sharp 5 mm reamer, ream the intake valve guide bush to obtain the standard oil clearance between the intake valve guide bush and valve stem.

Standard Oil Clearance:

0.025 to 0.060 mm (0.000984 to 0.00236 in.)



Hide 11126 4.INSTALL EXHAUST VALVE GUIDE BUSH

a.
A265777

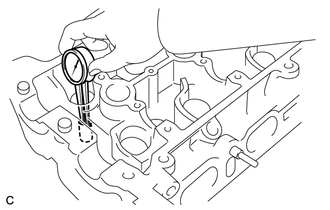

Using a caliper gauge, measure the exhaust valve guide bush bore diameter of the cylinder head sub-assembly.

Standard Bush Bore Diameter:

9.685 to 9.706 mm (0.3813 to 0.3821 in.)


New Guide Bush Selection Chart (STD or O/S 0.05):
Bush Bore Diameter Bush Size
9.685 to 9.706 mm (0.3813 to 0.3821 in.) STD
9.735 to 9.755 mm (0.3833 to 0.3841 in.) O/S 0.05


HINT:

If the exhaust valve guide bush bore diameter of the cylinder head sub-assembly is greater than 9.706 mm (0.3821 in.), machine the exhaust valve guide bush bore to a diameter of 9.735 to 9.755 mm (0.3833 to 0.3841 in.) to install an O/S 0.05 exhaust valve guide bush. If the bush bore diameter of the cylinder head sub-assembly is greater than 9.755 mm (0.3841 in.), replace the cylinder head sub-assembly.



b.

Heat the cylinder head sub-assembly to 80 to 100°C (176 to 212°F).


c.

Place the cylinder head sub-assembly on wooden blocks.


d.
A265778

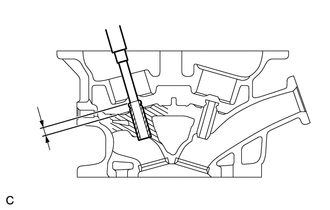

1.271,0.354 1.875,0.219 1.875,0.219 1.313,0.625 false 0.25,1.323 0.667,1.677 0.417,0.354 10 false *a 1.958,0.156 2.417,0.354 0.458,0.198 10 false SST
*a Protrusion Height


Using SST and a hammer, tap in a new exhaust valve guide bush to the specified protrusion height.

SST
09201-10000  (09201-01050)
09950-70010  (09951-07100)

Standard Protrusion Height:

9.0 to 9.4 mm (0.354 to 0.370 in.)



e.

Using a sharp 5 mm reamer, ream the exhaust valve guide bush to obtain the standard oil clearance between the exhaust valve guide bush and valve stem.

Standard Oil Clearance:

0.030 to 0.065 mm (0.00118 to 0.00256 in.)



Hide 11151A 5.REPLACE CAMSHAFT BEARING CAP SETTING RING PIN

NOTICE:

It is not necessary to remove the 2 camshaft bearing cap setting ring pins unless they are being replaced.


a.

Remove the 2 camshaft bearing cap setting ring pins.


b.

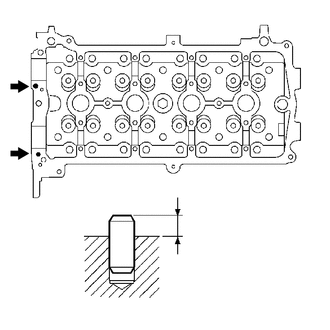

A251013
1.948,2.271 3.156,2.719 1.208,0.448 10 false *a
*a 4.5 to 5.5 mm (0.177 to 0.217 in.)


Using a plastic-faced hammer, tap in 2 new camshaft bearing cap setting ring pins to the specified protrusion height.

Standard Protrusion Height:

4.5 to 5.5 mm (0.177 to 0.217 in.)



Hide 17159 6.REPLACE STUD BOLT

NOTICE:

If a stud bolt is deformed or the threads are damaged, replace it.


a.

Using an E5 and E7 "TORX" socket wrench, remove the stud bolts.


b.

Using an E5 and E7 "TORX" socket wrench, install the stud bolts.

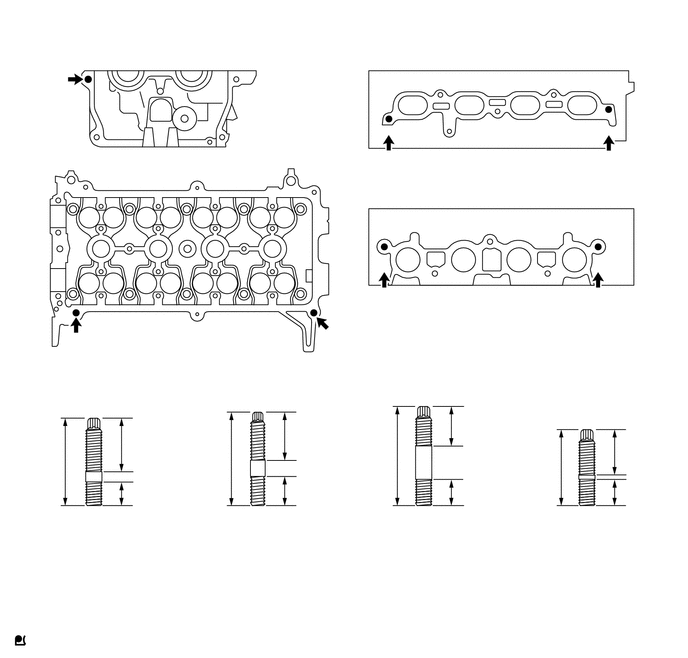

A154874
0.552,0.729 0.938,1.073 0.385,0.344 10 false A 0.927,5.333 1.313,5.719 0.385,0.385 10 false A 0.729,3.469 1.115,3.906 0.385,0.438 10 false B 2.646,5.333 2.979,5.802 0.333,0.469 10 false B 3.479,3.333 3.792,3.667 0.313,0.333 10 false B 4.385,5.333 4.688,5.719 0.302,0.385 10 false C 6.302,1.594 6.604,2.135 0.302,0.542 10 false C 4.01,1.594 4.385,2.031 0.375,0.438 10 false C 3.979,3.031 4.281,3.417 0.302,0.385 10 false D 6.094,5.333 6.406,5.656 0.313,0.323 10 false D 6.208,3.021 6.49,3.531 0.281,0.51 10 false D 0.438,4.76 0.906,5.104 0.469,0.344 10 false *e 2.146,4.708 2.583,5.302 0.438,0.594 10 false *h 3.938,4.667 4.375,5.219 0.438,0.552 10 false *j 5.573,4.802 6,5.531 0.427,0.729 10 false *m 1.375,4.51 1.833,4.844 0.458,0.333 10 false *f 1.469,5.042 1.938,5.677 0.469,0.635 10 false *g 3.167,5 3.656,5.625 0.49,0.625 10 false *g 3.125,4.458 3.604,4.948 0.479,0.49 10 false *i 4.833,4.365 5.354,4.917 0.521,0.552 10 false *k 4.875,5.083 5.354,5.688 0.479,0.604 10 false *l 6.573,5.052 7.063,5.615 0.49,0.563 10 false *i 6.531,4.625 7.094,5.094 0.563,0.469 10 false *n 1.604,0.344 1.917,0.542 0.313,0.198 10 false *a 5.115,0.385 5.427,0.583 0.313,0.198 10 false *b 1.75,1.708 2.063,1.906 0.313,0.198 10 false *c 5.135,1.865 5.448,2.063 0.313,0.198 10 false *d
*a Front Side *b Intake Side
*c Upper Side *d Exhaust Side
*e 43.5 mm (1.71 in.) *f 26.5 mm (1.04 in.)
*g 12 mm (0.472 in.) *h 38.5 mm (1.52 in.)
*i 19.5 mm (0.768 in.) *j 45 mm (1.77 in.)
*k 24 mm (0.945 in.) *l 13 mm (0.512 in.)
*m 37.5 mm (1.48 in.) *n 22.5 mm (0.886 in.)


Torque:
Bolt (A), (C) : 10 N*m (102 kgf*cm, 7 ft.*lbf)
Bolt (B) : 4.0 N*m (41 kgf*cm, 35 in.*lbf)
Bolt (D) : 9.0 N*m (92 kgf*cm, 80 in.*lbf)
