2ZR-FE COOLING THERMOSTAT INSTALLATION
PROCEDURE
16331A
1.INSTALL THERMOSTAT
a.
Install a new gasket to the thermostat.
b.
2.448,0.531 2.198,0.531
2.198,0.531 1.573,1.01
false
1.302,0.052 1.542,0.208
0.24,0.156
10
10°
1.615,0.052 1.865,0.208
0.25,0.156
10
10°
2.5,0.458 2.813,0.615
0.313,0.156
10
*a
| *a | Jiggle Valve |

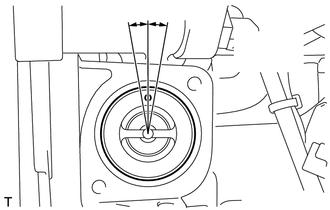

Install the thermostat to the water inlet housing.
- NOTICE:
-
The jiggle valve may be set within 10° on either side of the prescribed position.
16321
2.INSTALL WATER INLET
a.
Install the water inlet with the 2 nuts.
- Torque:
- 10 N*m (102 kgf*cm, 7 ft.*lbf)
3.ADD ENGINE COOLANT
4.INSPECT FOR COOLANT LEAK
