U441E AUTOMATIC TRANSMISSION / TRANSAXLE PARK / NEUTRAL POSITION SWITCH INSTALLATION
PROCEDURE
84540
1.INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

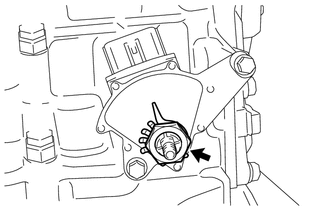

Temporarily install the park/neutral position switch assembly to the automatic transaxle assembly with the 2 bolts.
Install a new lock plate and lock nut to the manual valve lever shaft.
- Torque:
- 6.9 N*m (70 kgf*cm, 61 in.*lbf)

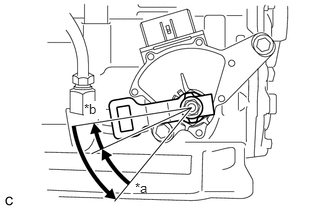

| *a | P Position |
| *b | N Position |
Temporarily install the transmission control shaft lever to the manual valve lever shaft.
Rotate the transmission control shaft lever counterclockwise until it stops, then rotate it clockwise 2 notches.
Remove the transmission control shaft lever from the manual valve lever shaft.
| *a | Neutral Basic Line |
| *b | Protrusion |
Rotate the park/neutral position switch assembly clockwise or counterclockwise to align the neutral basic line with the protrusion as shown in the illustration.
Hold the park/neutral position switch assembly in this position and tighten the 2 bolts.
- Torque:
- 5.4 N*m (55 kgf*cm, 48 in.*lbf)

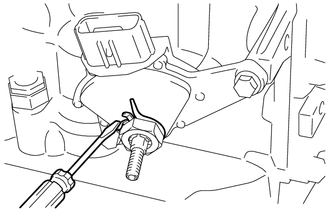

Using a screwdriver, secure the lock nut with the lock plate.
Install the transmission control shaft lever to the manual valve lever shaft with the washer and nut.
- Torque:
- 12.3 N*m (125 kgf*cm, 9 ft.*lbf)
Connect the park/neutral position switch assembly connector.
33820B
2.CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.
Connect the transmission control cable assembly to the transmission control shaft lever with the nut.
- Torque:
- 12 N*m (122 kgf*cm, 9 ft.*lbf)
3.ADJUST SHIFT LEVER POSITION
4.INSPECT SHIFT LEVER POSITION
84540
5.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY OPERATION
51442C
6.INSTALL ENGINE UNDER COVER LH
