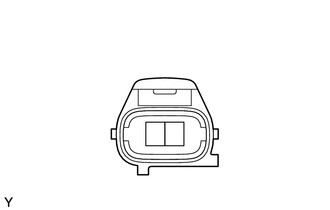

*a	Component without harness connected (Camshaft Position Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	Cold	1630 to 2740 Ω
	Hot	2065 to 3225 Ω

HINT:

In the table above, the terms "Cold" and "Hot" mean the temperature of the coils themselves. "Cold" is from -10 to 50°C (14 to 122°F) and "Hot" is from 50 to 100°C (122 to 212°F).

If the result is not as specified, replace the camshaft position sensor.
