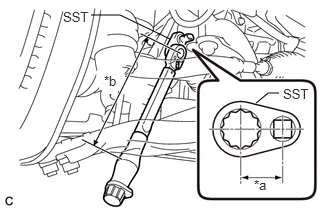

*a	Length of SST 50 mm (1.97 in.)
*b	Length of Torque Wrench 180 mm (7.09 in.)

Using SST, install the oil pressure sensor to the continuously variable transaxle assembly.

SST

09326-22011

Torque:

without SST [Torque (N*m(kgf*cm, ft.*lbf))] : 20.6 N*m (210 kgf*cm, 15 ft.*lbf)

with SST [Reading of Torque wrench (N*m(kgf*cm, ft.*lbf))] : 16.1 N*m (164 kgf*cm, 12 ft.*lbf)

HINT:

·

This torque value is effective when SST is parallel to the torque wrench.

·

The "with SST" torque value is effective when using SST with a fulcrum length of 50 mm (1.97 in.).

·

The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 180 mm (7.09 in.).

·

If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION
