K313 CVT  OIL PRESSURE SENSOR  REMOVAL


PROCEDURE

Hide 1.REMOVE FRONT WHEEL LH

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 51442C 2.REMOVE ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 89637K 3.REMOVE OIL PRESSURE SENSOR

a.

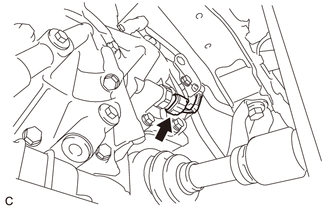

C264242

Disconnect the oil pressure sensor connector.


b.

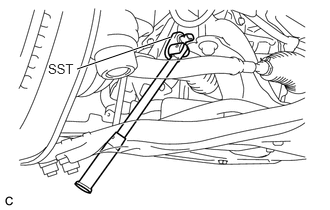

C270612N01
0.802,0.719 1.781,0.385 true 0.5,0.635 0.875,0.823 0.375,0.188 10 false SST

Using SST, remove the oil pressure sensor from the continuously variable transaxle assembly.

SST
09326-22011
