U441E AUTOMATIC TRANSMISSION / TRANSAXLE PARK / NEUTRAL POSITION SWITCH INSPECTION
PROCEDURE
84540
1.INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
a.
1.948,1 2.5,0.49
true
1.938,1 2.49,0.49
true
1.938,1 2.49,0.49
true
1.667,1.021 2.083,0.281
true
1.417,0.99 0.917,0.292
true
1.198,0.99 0.583,0.5
true
2.167,1.354 2.885,1.927
true
1.969,1.375 2.323,1.927
true
1.729,1.375 1.448,1.948
true
1.26,1.375 0.531,1.781
true
1.438,1.375 0.896,1.938
true
0.115,0.094 0.427,0.25
0.313,0.156
10
false
*a
2.563,0.396 2.875,0.594
0.313,0.198
10
false
RL
2.125,0.188 2.438,0.385
0.313,0.198
10
false
RB
0.74,0.188 1.052,0.385
0.313,0.198
10
false
2L
0.448,0.406 0.76,0.604
0.313,0.198
10
false
B
0.323,1.708 0.635,1.906
0.313,0.198
10
false
NL
1.229,1.875 1.542,2.073
0.313,0.198
10
false
DL
0.688,1.865 1,2.063
0.313,0.198
10
false
LL
2.385,1.865 2.698,2.063
0.313,0.198
10
false
PL
2.958,1.854 3.271,2.052
0.313,0.198
10
false
L

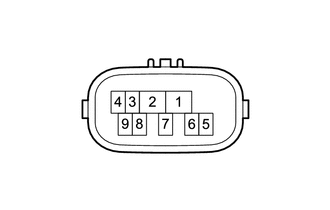

| *a | Component without harness connected
(Park/Neutral Position Switch Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 4 (B) - 5 (L) Shift lever in P or N Below 1 Ω Shift lever not in P or N 10 kΩ or higher 2 (RB) - 6 (PL) Shift lever in P Below 1 Ω Shift lever not in P 10 kΩ or higher 1 (RL) - 2 (RB) Shift lever in R Below 1 Ω Shift lever not in R 10 kΩ or higher 2 (RB) - 9 (NL) Shift lever in N Below 1 Ω Shift lever not in N 10 kΩ or higher 2 (RB) - 7 (DL) Shift lever in D or 3 Below 1 Ω Shift lever not in D or 3 10 kΩ or higher 2 (RB) - 3 (2L) Shift lever in 2 Below 1 Ω Shift lever not in 2 10 kΩ or higher 2 (RB) - 8 (LL) Shift lever in L Below 1 Ω Shift lever not in L 10 kΩ or higher
If the result is not as specified, replace the park/neutral position switch assembly.
