U441E AUTOMATIC TRANSMISSION / TRANSAXLE PARK / NEUTRAL POSITION SWITCH ADJUSTMENT
PROCEDURE
84540
1.ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY
a.
Apply the parking brake.
b.
Move the shift lever to N.
c.
Loosen the 2 bolts of the park/neutral position switch assembly.
d.
0.833,0.76 1.531,0.927
true
0.865,1.333 1.594,1.156
true
0.677,0.646 0.99,0.802
0.313,0.156
10
false
*a
0.698,1.24 1.01,1.396
0.313,0.156
10
false
*b

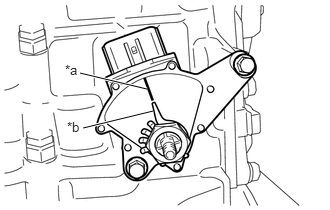

| *a | Neutral Basic Line |
| *b | Protrusion |
Align the protrusion with the neutral basic line.
e.
Hold the park/neutral position switch assembly in position and tighten the 2 bolts.
- Torque:
- 5.4 N*m (55 kgf*cm, 48 in.*lbf)
f.
After the adjustment, perform the park/neutral position switch assembly operation check.
