U441E AUTOMATIC TRANSMISSION / TRANSAXLE  VALVE BODY ASSEMBLY  INSPECTION


PROCEDURE

Hide 35250C 1.INSPECT SHIFT SOLENOID VALVE S1

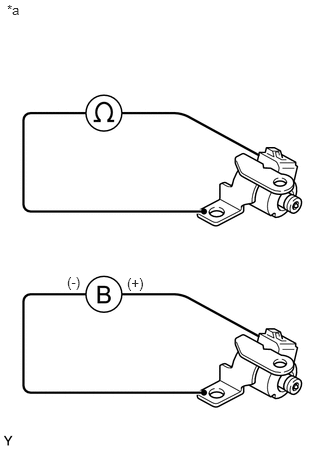

a.
C117936C01
0.698,2.854 0.896,3.052 0.198,0.198 10 false (-) 0.073,0.021 1.677,0.208 1.604,0.188 10 false *a 1.323,2.865 1.521,3.063 0.198,0.198 10 false (+)
*a Component without harness connected
(Shift Solenoid Valve S1)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Shift solenoid valve S1 connector (terminal) - Shift solenoid valve S1 body 20°C (68°F) 11 to 15 Ω


If the result is not as specified, replace the shift solenoid valve S1.


b.

Connect a positive (+) lead from the battery to the terminal of the shift solenoid valve S1 connector and a negative (-) lead to the solenoid body, then check the operation of the valve.

NOTICE:

While using the battery during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.


OK:

The solenoid valve makes an operating sound.


If the result is not as specified, replace the shift solenoid valve S1.


Hide 2.INSPECT SHIFT SOLENOID VALVE S2

HINT:

Refer to Inspect Shift Solenoid Valve S1.


Hide 35250A 3.INSPECT SHIFT SOLENOID VALVE SL

HINT:

Refer to Inspect Shift Solenoid Valve S1.


Hide 35250D 4.INSPECT SHIFT SOLENOID VALVE ST

HINT:

Refer to Inspect Shift Solenoid Valve S1.


Hide 35290 5.INSPECT SHIFT SOLENOID VALVE SLT

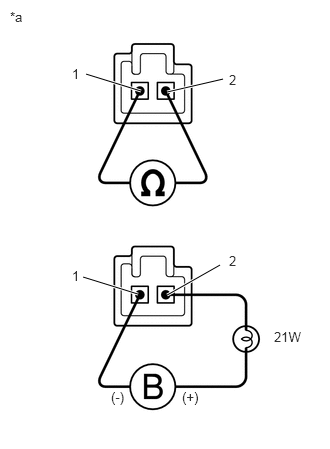

a.
C279806C01
1.469,0.948 0.896,0.771 true 1.438,3.063 0.865,2.885 true 2.323,0.823 1.74,0.958 true 2.292,2.76 1.74,3.073 true 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a 0.75,0.688 1.063,0.885 0.313,0.198 10 false 1 2.385,0.75 2.698,0.948 0.313,0.198 10 false 2 0.75,2.792 1.063,2.99 0.313,0.198 10 false 1 2.385,2.635 2.698,2.833 0.313,0.198 10 false 2 2.854,3.427 3.208,3.656 0.354,0.229 10 false 21W 1.156,4.052 1.469,4.25 0.313,0.198 10 false (-) 1.896,4.052 2.208,4.25 0.313,0.198 10 false (+)
*a Component without harness connected
(Shift Solenoid Valve SLT)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 20°C (68°F) 5.1 to 5.5 Ω


If the result is not as specified, replace the shift solenoid valve SLT.


b.

Connect a positive (+) lead with a 21W bulb from the battery to terminal 2 and a negative (-) lead to terminal 1, then check the operation of the solenoid valve.

NOTICE:

While using the battery during the inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.


OK:

The solenoid valve makes an operating sound.


If the result is not as specified, replace the shift solenoid valve SLT.
