2NZ-FE ENGINE CONTROL KNOCK SENSOR REMOVAL
PROCEDURE
17111
1.REMOVE INTAKE MANIFOLD
89615

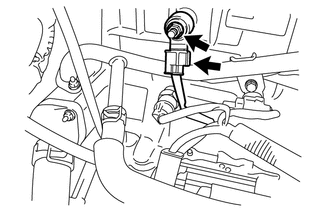

2.REMOVE KNOCK CONTROL SENSOR
a.
Disconnect the knock control sensor connector.
b.
Remove the nut and knock control sensor from the cylinder block sub-assembly.
- NOTICE:
-
If the knock control sensor has been struck or dropped, replace it.
