1.208,0.073 1.521,0.229 0.313,0.156 10 false *a

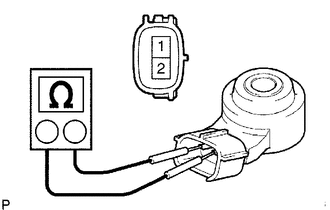

*a	Component without harness connected (Knock Control Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	25°C (77°F)	120 to 280 kΩ

If the result is not as specified, replace the knock control sensor.
