0.073,0.073 0.385,0.229 0.313,0.156 10 *a

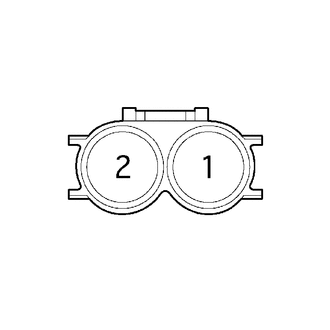

*a	Component without harness connected (Crankshaft Position Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - 2	Cold	985 to 1600 Ω
	Hot	1265 to 1890 Ω

HINT:

In the table above, the terms "Cold" and "Hot" mean the temperature of the coils themselves. "Cold" is from -10 to 50°C (14 to 122°F) and "Hot" is from 50 to 100°C (122 to 212°F).

If the result is not as specified, replace the crankshaft position sensor.
