2NZ-FE ENGINE CONTROL  MASS AIR FLOW METER  REMOVAL


PROCEDURE

Hide 22204 1.REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

a.

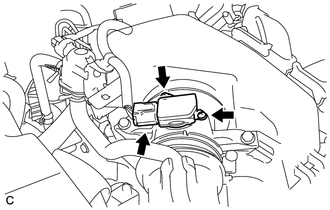

A322460

Disconnect the mass air flow meter sub-assembly connector.


b.

Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.

NOTICE:

If the mass air flow meter sub-assembly has been struck or dropped, replace it.
