2NZ-FE COOLING THERMOSTAT REMOVAL

PROCEDURE

Hide Display 1.DRAIN ENGINE COOLANT

Click hereEngine / Hybrid System>2NZ-FE COOLING>COOLANT>REPLACEMENT

Hide Display 16321 2.REMOVE WATER INLET

a.

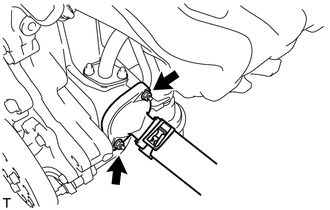

A116186

Remove the 2 nuts and water inlet.

Hide Display 16331A 3.REMOVE THERMOSTAT

a.

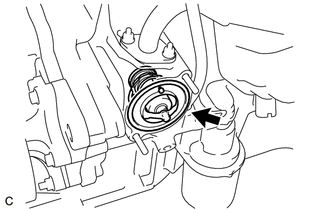

A326253

Remove the thermostat from the water inlet housing.

b.

Remove the gasket from the thermostat.
