2NZ-FE COOLING THERMOSTAT INSTALLATION
PROCEDURE
16331A
1.INSTALL THERMOSTAT
a.
Install a new gasket to the thermostat.
b.
1.688,0.99 1.969,0.708
1.969,0.708 2.146,0.708
false
1.885,0.24 2.219,0.479
0.333,0.24
10
true
10°
1.24,0.219 1.573,0.458
0.333,0.24
10
true
10°
2.198,0.635 2.438,0.854
0.24,0.219
10
true
*a
| *a | Jiggle Valve |

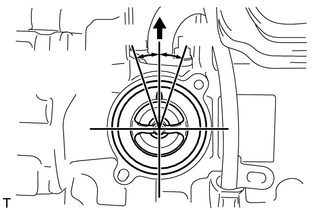

Install the thermostat to the water inlet housing.
- NOTICE:
-
The jiggle valve may be set within 10° on either side of the prescribed position.
16321
2.INSTALL WATER INLET
a.
Install the water inlet with the 2 nuts.
- Torque:
- 9.0 N*m (92 kgf*cm, 80 in.*lbf)
3.ADD ENGINE COOLANT
4.INSPECT FOR COOLANT LEAK
