SEAT BELT FRONT SEAT OUTER BELT ASSEMBLY INSPECTION
PROCEDURE
73220
1.INSPECT FRONT SEAT OUTER BELT ASSEMBLY
a.
2.344,1.896 2.229,2.188
2.229,2.188 1.813,2.167
false
1.823,4.354 2.25,4.427
2.25,4.427 2.198,4.135
false
2.219,2.229 2.531,2.385
0.313,0.156
10
false
*a
2.302,0.156 2.615,0.313
0.313,0.156
10
false
*b
0.646,3.104 0.958,3.26
0.313,0.156
10
false
*c
1.344,0.198 1.656,0.354
0.313,0.156
10
false
*d
2.313,2.49 2.625,2.646
0.313,0.156
10
false
*b
1.365,2.635 1.677,2.792
0.313,0.156
10
false
*d
0.615,0.698 0.927,0.854
0.313,0.156
10
false
*c
2.292,4.427 2.604,4.583
0.313,0.156
10
false
*a
| *a | Retractor |
| *b | Unlock |
| *c | Lock |
| *d | 45° |

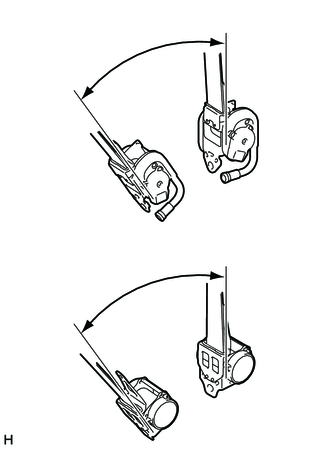

Before installing the front seat outer belt assembly, check the ELR function.
- NOTICE:
-
Do not disassemble the retractor.
i.
When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
If the result is not as specified, replace the front seat outer belt assembly.
