LIGHTING (EXT)  STOP LIGHT SWITCH  INSTALLATION


PROCEDURE

Hide 84340 1.INSTALL STOP LIGHT SWITCH ASSEMBLY

a.

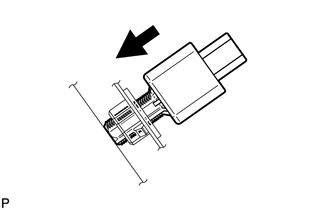

E167768

Insert the stop light switch assembly until the threaded sleeve hits the pedal.

NOTICE:

When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.



b.

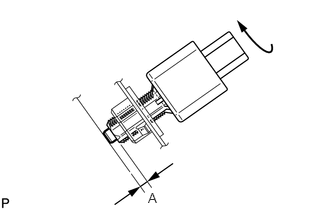

E259461C02
1.542,1.979 1.854,2.177 0.313,0.198 10 false A

Turn the stop light switch assembly a quarter turn clockwise to install the stop light switch assembly.

Torque:
1.5 N*m (15 kgf*cm, 13 in.*lbf)

or less


NOTICE:

When installing the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in.



c.

Connect the connector.


d.

Check the protrusion of the plunger.

Area Measurement
A 0.5 to 2.6 mm (0.0197 to 0.102 in.)

If the protrusion is not as specified, recheck switch installation and inspect brake pedal adjustment if necessary.

Click hereBrake>BRAKE SYSTEM (OTHER)>BRAKE PEDAL>ADJUSTMENT

NOTICE:

Do not depress or support the brake pedal.



Hide 55606 2.INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
