LIGHTING (EXT) HEADLIGHT DIMMER SWITCH INSPECTION
PROCEDURE
84140
1.INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY
a.
2.323,1.083 2.688,0.458
false
2.188,1.083 2.01,0.427
false
2.406,1.396 2.948,1.813
false
0.688,1.833 1.115,1.396
false
1.115,1.833 1.417,1.396
false
1.5,1.844 1.583,1.406
false
1.969,1.844 1.854,1.396
false
2.323,1.833 2.031,1.406
false
2.229,1.396 2.625,1.865
false
0.427,1.677 0.896,1.396
false
0.229,1.698 0.469,1.906
0.24,0.208
10
false
TR
0.146,0.125 0.458,0.281
0.313,0.156
10
false
*a
2.594,0.26 3.365,0.458
0.771,0.198
10
false
BFG*A
1.833,0.25 2.604,0.448
0.771,0.198
10
false
LFG*A
3.01,1.833 3.167,2.031
0.156,0.198
10
false
H
2.656,1.906 2.813,2.104
0.156,0.198
10
false
T
2.26,1.875 2.604,2.094
0.344,0.219
10
false
HF
1.896,1.885 2.24,2.104
0.344,0.219
10
false
HL
1.438,1.885 1.781,2.104
0.344,0.219
10
false
EL
0.969,1.854 1.313,2.073
0.344,0.219
10
false
HU
0.563,1.844 0.802,2.052
0.24,0.208
10
false
TL
| *A | w/ Front Fog Light |

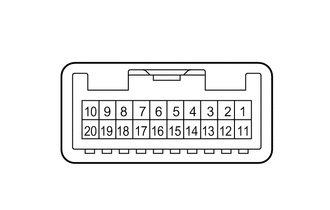

| *a | Component without harness connected
(Headlight Dimmer Switch Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Light Control Switch Tester Connection Condition Specified Condition 13 (T) - 16 (EL) Light control switch off 10 kΩ or higher 12 (H) - 16 (EL) 10 kΩ or higher 13 (T) - 16 (EL) Light control switch in tail position Below 1 Ω 13 (T) - 16 (EL) Light control switch in head position Below 1 Ω 12 (H) - 16 (EL) Below 1 Ω
Dimmer Switch Tester Connection Condition Specified Condition 15 (HL) - 16 (EL) Dimmer switch in low position Below 1 Ω 17 (HU) - 16 (EL) Dimmer switch in high position Below 1 Ω 17 (HU) - 16 (EL) Dimmer switch in high flash position Below 1 Ω 14 (HF) - 16 (EL) Below 1 Ω
Turn Signal Switch Tester Connection Condition Specified Condition 20 (TR) - 16 (EL) Turn signal switch in neutral position 10 kΩ or higher 19 (TL) - 16 (EL) 10 kΩ or higher 20 (TR) - 16 (EL) Turn signal switch in right turn position Below 1 Ω 19 (TL) - 16 (EL) Turn signal switch in left turn position Below 1 Ω
Fog Light Switch Tester Connection Condition Specified Condition 2 (BFG) - 3 (LFG)* Fog light switch off 10 kΩ or higher 2 (BFG) - 3 (LFG)* Fog light switch in front position Below 1 Ω
*: w/ Front Fog Light
If the result is not as specified, replace the headlight dimmer switch assembly.
