LIGHTING (EXT)  HEADLIGHT ASSEMBLY  DISASSEMBLY


PROCEDURE

Hide 53182E 1.REMOVE HEADLIGHT COVER

a.

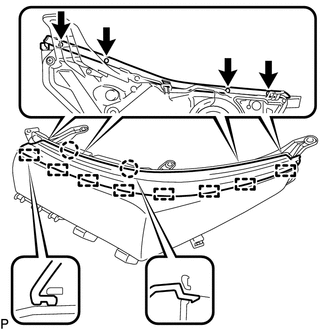

E282390

Remove the 4 screws.


b.

Disengage the 2 claws and 8 guides to remove the headlight cover from the headlight unit.


Hide 81110B 2.REMOVE NO. 1 HEADLIGHT BULB

a.

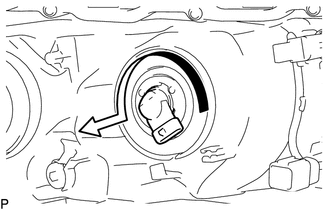

E281934

Turn the No. 1 headlight bulb as shown in the illustration to remove it.

NOTICE:

Do not touch the bulb glass.



Hide 81110D 3.REMOVE NO. 2 HEADLIGHT BULB

a.

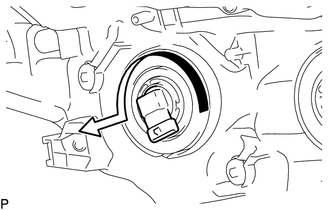

E281936

Turn the No. 2 headlight bulb as shown in the illustration to remove it.

NOTICE:

Do not touch the bulb glass.



Hide 81510D 4.REMOVE FRONT TURN SIGNAL LIGHT BULB

a.

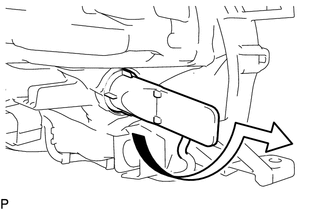

E281950

Turn the headlight cord with the front turn signal light bulb as shown in the illustration, and disconnect them as a unit.


b.

Remove the front turn signal light bulb from the headlight cord.


Hide 81610F 5.REMOVE CLEARANCE LIGHT BULB

a.

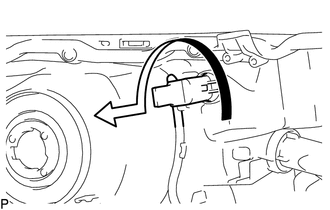

E281941

Turn the headlight cord with the clearance light bulb as shown in the illustration, and disconnect them as a unit.


b.

Remove the clearance light bulb from the headlight cord.
