DOOR LOCK  FRONT DOOR LOCK  INSPECTION


PROCEDURE

Hide 69310 1.INSPECT FRONT DOOR LOCK ASSEMBLY RH

a.

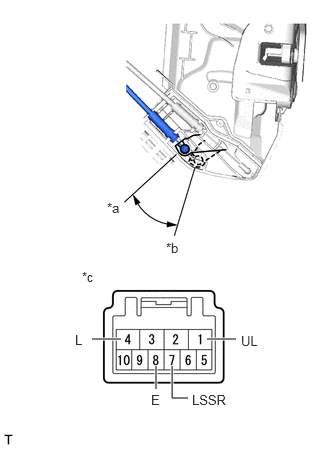

B340409C05
0.958,3.531 1.26,3.531 true 2.156,3.531 2.458,3.531 true 1.792,3.813 1.792,4.146 1.792,4.146 1.958,4.146 true 1.625,3.813 1.625,4.052 true 1.115,2.083 1.427,2.24 0.313,0.156 10 false *a 1.729,2.5 2.042,2.656 0.313,0.156 10 false *b 2.51,3.469 2.823,3.667 0.313,0.198 10 false UL 2,4.083 2.396,4.281 0.396,0.198 10 false LSSR 1.573,4.083 1.885,4.281 0.313,0.198 10 false E 0.781,3.458 1.094,3.656 0.313,0.198 10 false L 0.854,2.802 1.167,2.958 0.313,0.156 10 false *c
*a Unlock
*b Lock
*c Component without harness connected
(Front Door Lock Assembly RH)


Check the operation of the door lock motor.

i.

Apply battery voltage and check the operation of the door lock motor.

OK:
Battery Connection Result
Battery positive (+) → Terminal 4 (L)
Battery negative (-) → Terminal 1 (UL) 		Locks
Battery positive (+) → Terminal 1 (UL)
Battery negative (-) → Terminal 4 (L) 		Unlocks


If the result is not as specified, replace the front door lock assembly RH.



b.

Check the operation of the door unlock detection switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
7 (LSSR) - 8 (E) Locked 10 kΩ or higher
7 (LSSR) - 8 (E) Unlocked Below 1 Ω


If the result is not as specified, replace the front door lock assembly RH.



c.

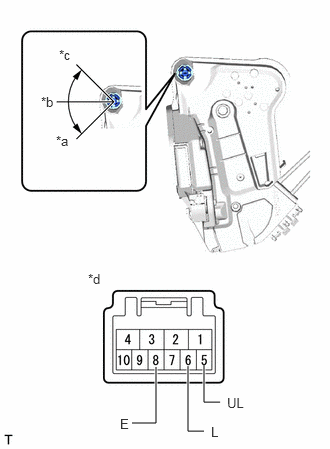

B340408C11
1.375,4.406 1.625,4.406 1.625,4.406 1.625,3.823 true 2.292,4.188 2.125,4.188 2.125,4.188 2.125,3.802 true 2.125,4.49 1.958,4.49 1.958,4.49 1.958,3.813 true 0.583,1.385 0.896,1.542 0.313,0.156 10 false *a 0.427,0.979 0.74,1.135 0.313,0.156 10 false *b 0.615,0.49 0.927,0.646 0.313,0.156 10 false *c 2.365,4.115 2.563,4.302 0.198,0.188 10 false UL 1.25,4.333 1.406,4.51 0.156,0.177 10 false E 2.198,4.417 2.344,4.583 0.146,0.167 10 false L 0.917,2.823 1.229,3.021 0.313,0.198 10 false *d
*a Unlock
*b Neutral
*c Lock
*d Component without harness connected
(Front Door Lock Assembly RH)


Check the operation of the door key lock and unlock switch.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6 (L) - 8 (E) Held to lock side Below 1 Ω
6 (L) - 8 (E) Neutral or held to unlock side 10 kΩ or higher
5 (UL) - 8 (E) Held to unlock side Below 1 Ω
5 (UL) - 8 (E) Neutral or held to lock side 10 kΩ or higher


If the result is not as specified, replace the front door lock assembly RH.



Hide 69320 2.INSPECT FRONT DOOR LOCK ASSEMBLY LH

a.

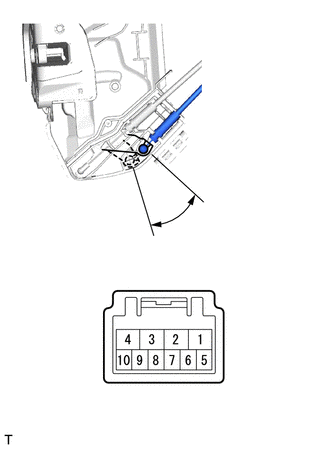

B340410
2.146,3.542 2.51,3.542 true 0.885,3.531 1.25,3.531 true 2.156,2.063 2.469,2.219 0.313,0.156 10 false *a 1.583,2.479 1.896,2.635 0.313,0.156 10 false *b 2.573,3.479 2.885,3.677 0.313,0.198 10 false UL 0.792,3.458 1.104,3.656 0.313,0.198 10 false L 0.906,2.802 1.219,2.958 0.313,0.156 10 false *c
*a Unlock
*b Lock
*c Component without harness connected
(Front Door Lock Assembly LH)


Check the operation of the door lock motor.

i.

Apply battery voltage and check the operation of the door lock motor.

OK:
Battery Connection Result
Battery positive (+) → Terminal 4 (L)
Battery negative (-) → Terminal 1 (UL) 		Locks
Battery positive (+) → Terminal 1 (UL)
Battery negative (-) → Terminal 4 (L) 		Unlocks


If the result is not as specified, replace the front door lock assembly LH.



b.

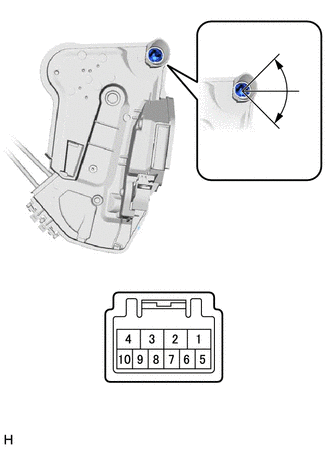

B347368
1.052,4.302 1.302,4.302 1.302,4.302 1.302,3.802 true 1.708,4.313 1.458,4.313 1.458,4.313 1.458,3.813 true 2.375,4.052 1.792,4.052 1.792,4.052 1.792,3.802 true 2.938,1.385 3.25,1.583 0.313,0.198 10 false *a 3.135,0.854 3.385,1.094 0.25,0.24 10 false *b 2.938,0.396 3.25,0.594 0.313,0.198 10 false *c 0.719,2.958 1.031,3.156 0.313,0.198 10 false *d 0.844,4.229 1.156,4.427 0.313,0.198 10 false UL 1.781,4.229 2.094,4.427 0.313,0.198 10 false L 2.438,3.979 2.75,4.177 0.313,0.198 10 false E
*a Unlock
*b Neutral
*c Lock
*d Component without harness connected
(Front Door Lock Assembly LH)


Check the operation of the door key lock and unlock switch. (w/o Wireless Door Lock Control Function)

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
9 (L) - 7 (E) Held to lock side Below 1 Ω
9 (L) - 7 (E) Neutral or held to unlock side 10 kΩ or higher
10 (UL) - 7 (E) Held to unlock side Below 1 Ω
10 (UL) - 7 (E) Neutral or held to lock side 10 kΩ or higher


If the result is not as specified, replace the front door lock assembly LH.
