LIGHTING (INT)  PERSONAL LIGHT  INSTALLATION


PROCEDURE

Hide 81266D 1.INSTALL NO. 2 MAP LIGHT LENS (w/ Sliding Roof)

a.

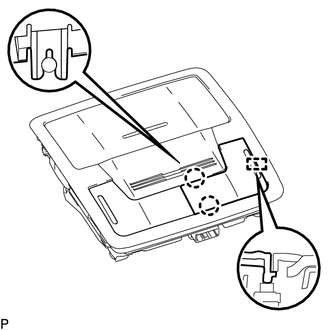

E279347

Engage the guide and 2 claws to install the No. 2 map light lens to the map light assembly.


Hide 81265C 2.INSTALL NO. 1 MAP LIGHT LENS (w/ Sliding Roof)

HINT:

Use the same procedure as for the No. 2 map light lens.


Hide 81260C 3.INSTALL MAP LIGHT BULB (w/ Sliding Roof)

a.

Install the 2 map light bulbs to the 2 map light sockets.


b.

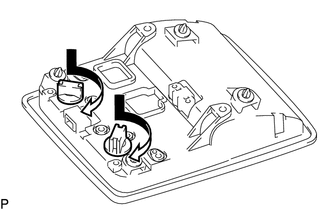

E279244

Turn the 2 map light sockets with the 2 map light bulbs as shown in the illustration to install them as a unit.


Hide 81260C 4.INSTALL MAP LIGHT BULB (w/o Sliding Roof)

a.

Install the 2 map light bulbs to the 2 map light sockets.


b.

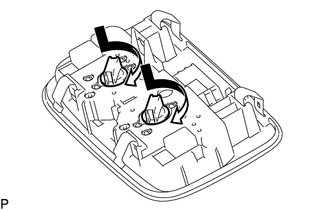

E279246

Turn the 2 map light sockets with the 2 map light bulbs as shown in the illustration to install them as a unit.


Hide 81260A 5.INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof)

a.

Connect the connector.


b.

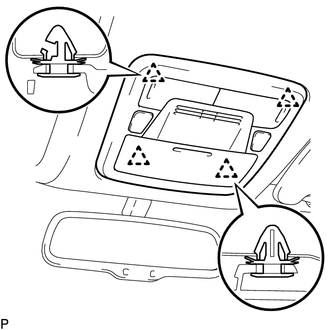

E279240

Engage the 4 clips to install the map light assembly.


Hide 81260A 6.INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof)

a.

Connect the connector.


b.

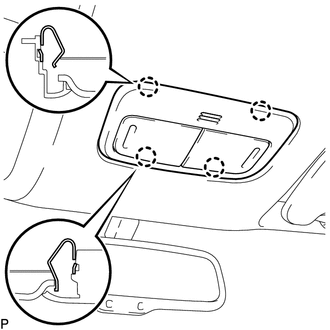

E279242

Engage the 4 claws to install the map light assembly.
