LIGHTING (INT)  FRONT DOOR COURTESY SWITCH  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 67914 1.REMOVE FRONT DOOR SCUFF PLATE

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 67918A 2.REMOVE REAR DOOR SCUFF PLATE

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 62312B 3.DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

a.

Disconnect the front door opening trim weatherstrip.


Hide 62332A 4.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

a.

Disconnect the rear door opening trim weatherstrip.


Hide 62414A 5.REMOVE CENTER PILLAR LOWER GARNISH

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL


Hide 84233 6.REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

a.

Disconnect the connector.


b.

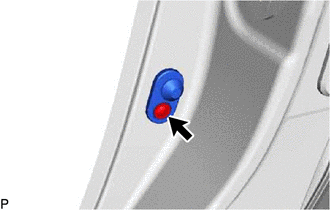

E279212

Using a T30 "TORX" socket wrench, remove the screw and front door courtesy light switch assembly.
