LIGHTING (INT)  LUGGAGE COMPARTMENT ROOM LIGHT  REMOVAL


PROCEDURE

Hide 81330 1.REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

a.

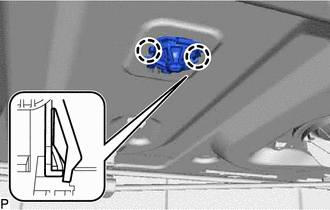

E279211

Disengage the 2 claws.


b.

Disconnect the connector to remove the No. 1 luggage compartment light assembly.


Hide 81330B 2.REMOVE LUGGAGE COMPARTMENT LIGHT BULB

a.
E252622

Disengage the claw.


b.

Remove the luggage compartment light bulb from the luggage compartment light body assembly.
