LIGHTING (INT)  ROOM LIGHT  REMOVAL


PROCEDURE

Hide 81240 1.REMOVE NO. 1 ROOM LIGHT ASSEMBLY (for Slide Switch Type)

a.
E252614
1.417,0.146 1.615,0.313 0.198,0.167 10 true *a
*a Front
V100155

Protective Tape

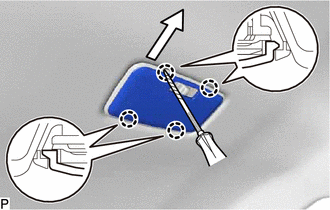

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the No. 1 room light lens.


b.
E279233
2.708,0.552 2.906,0.74 0.198,0.188 10 true *a
*a Front
V100155

Protective Tape

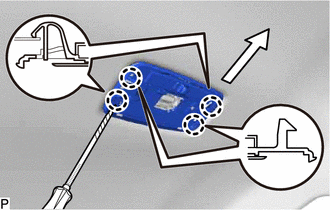

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to separate the No. 1 room light housing.


c.
E268904
1.813,0.917 2.313,0.5 false 2.333,0.344 2.521,0.5 0.188,0.156 10 true *a
*a Room Light Switch Base

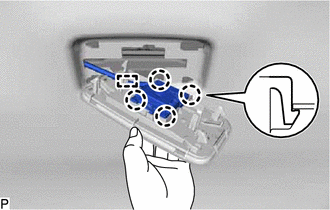

Disengage the clamp.


d.

Using a screwdriver, disengage the 4 claws to disconnect the room light switch base from the No. 1 room light housing.


Hide 81240B 2.REMOVE NO. 1 ROOM LIGHT BULB (for Slide Switch Type)

a.

Remove the No. 1 room light bulb from the room light switch base.


Hide 81250 3.REMOVE NO. 2 ROOM LIGHT ASSEMBLY (for Push Switch Type)

a.
E260427

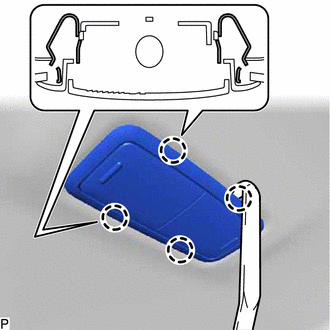

Using a moulding remover, disengage the 4 claws.


b.

Disconnect the connector to remove the No. 2 room light assembly.


Hide 81251B 4.REMOVE REAR ROOM LIGHT LENS RH (for Push Switch Type)

a.
E260429
0,0 0,0 false
V100155

Protective Tape

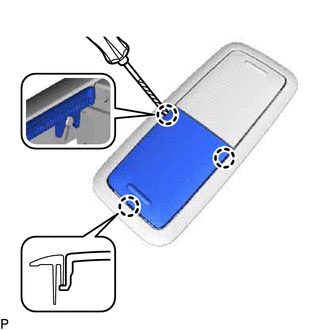

Using a screwdriver, disengage the 3 claws to remove the rear room light lens RH.


Hide 81291A 5.REMOVE REAR ROOM LIGHT LENS LH (for Push Switch Type)

HINT:

Use the same procedure as for the RH side.


Hide 81240B 6.REMOVE NO. 1 ROOM LIGHT BULB (for Push Switch Type)

a.

Remove the 2 No. 1 room light bulbs from the No. 1 room light housing.
