LIGHTING (INT)  VANITY LIGHT  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81340 1.REMOVE VANITY LIGHT ASSEMBLY

a.

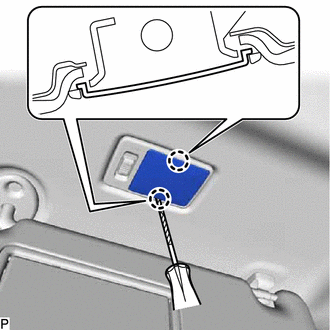

E268888
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the vanity light lens.


b.

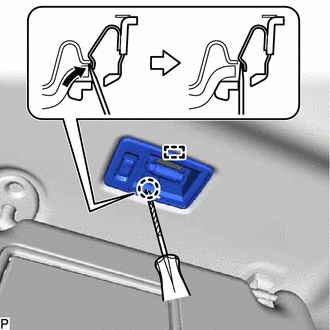

E268889
0,0 0,0 false
V100155

Protective Tape


Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.


c.

Disengage the guide to separate the vanity light housing.


d.

Disconnect the connector to remove the vanity light housing.


Hide 81340B 2.REMOVE VANITY LIGHT BULB

a.

Remove the vanity light bulb from the vanity light housing.
