U340E AUTOMATIC TRANSMISSION / TRANSAXLE  PARK / NEUTRAL POSITION SWITCH  ADJUSTMENT


PROCEDURE

Hide 84540 1.ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

a.

Apply the parking brake.


b.

Move the shift lever to N.


c.

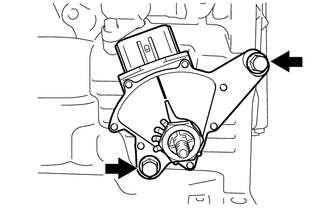

C290385

Loosen the 2 bolts of the park/neutral position switch assembly.


d.

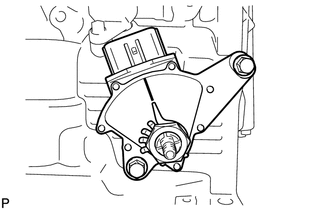

C117107
1.563,0.938 1.781,0.938 false 1.375,1.156 1.594,1.156 false 1.833,0.844 2.094,1.031 0.26,0.188 10 false *a 1.177,1.083 1.656,1.396 0.479,0.313 10 false *b
*a Neutral Basic Line
*b Indicator


Align the indicator with the neutral basic line.


e.
C290385

Hold the park/neutral position switch assembly in position and tighten the 2 bolts.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


f.

After the adjustment, perform the park/neutral position switch assembly operation check.

Click hereDrivetrain>U340E AUTOMATIC TRANSMISSION / TRANSAXLE>PARK / NEUTRAL POSITION SWITCH>ON-VEHICLE INSPECTION
