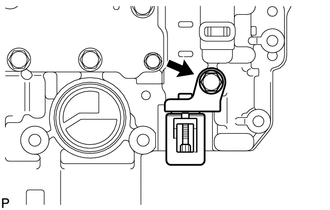

Remove the bolt and shift solenoid valve S1 from the transmission valve body assembly.

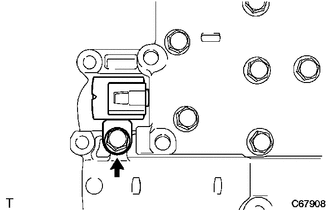

Remove the bolt and shift solenoid valve S2 from the transmission valve body assembly.

Remove the bolt, No. 2 solenoid lock plate and shift solenoid valve SLU from the transmission valve body assembly.

1.25,0.177 1.135,0.177 1.135,0.177 1.073,0.406 false 1.531,1.323 1.24,1.49 1.24,1.49 1.063,1.49 false 2.302,1.688 2.635,1.688 true 2.104,1 2.396,0.417 2.396,0.417 2.646,0.417 true 0.885,1.427 1.167,1.656 0.281,0.229 10 false *1 2.698,1.583 3.021,1.771 0.323,0.188 10 false *4 2.729,0.333 3.031,0.5 0.302,0.167 10 false *3 1.344,0.104 1.646,0.26 0.302,0.156 10 false *2

*1	No. 3 Solenoid Lock Plate
*2	Shift Solenoid Valve ST
*3	Shift Solenoid Valve SLT
*4	No. 1 Solenoid Lock Plate

Remove the 2 bolts, No. 3 solenoid lock plate and shift solenoid valve ST from the transmission valve body assembly.

2.292,1.031 2.844,0.635 true 1.375,1.292 1.688,1.479 false 2.885,0.531 3.198,0.688 0.313,0.156 10 false *1 1.219,1.188 1.531,1.344 0.313,0.156 10 false *2

*1	Shift Solenoid Valve SLT
*2	No. 1 Solenoid Lock Plate

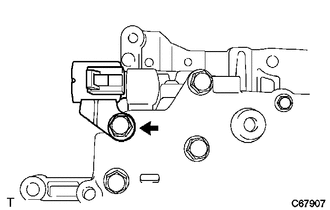

Remove the No. 1 solenoid lock plate and shift solenoid valve SLT from the transmission valve body assembly.
