EXTERIOR PANELS / TRIM  LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH  INSTALLATION


PROCEDURE

Hide 76821A 1.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH PROTECTOR

a.

Wipe off any tape adhesive residue with cleaner.


b.

Remove the release paper from a new luggage compartment door outside garnish protector.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



c.

Install the luggage compartment door outside garnish protector as shown in the illustration.

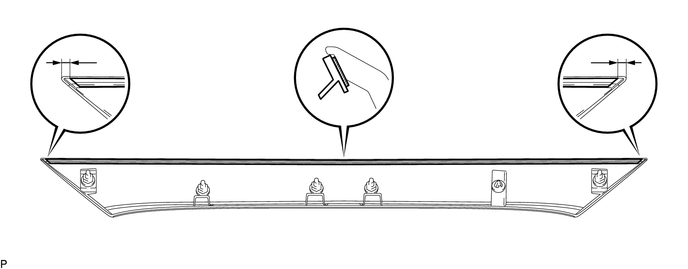

B350734
0.625,0.427 0.781,0.625 0.156,0.198 10 false A 6.427,0.417 6.583,0.615 0.156,0.198 10 false B

Standard Measurement:
Area Measurement Area Measurement
A 0.0 to 1.6 mm (0.0 to 0.0630 in.) B 0.0 to 1.6 mm (0.0 to 0.0630 in.)



Hide 76801A 2.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (w/ Lock Cylinder)

a.

Install 6 new gaskets to the luggage compartment door outside garnish sub-assembly.


b.

Install a new clip to the luggage compartment door outside garnish sub-assembly.


c.

Engage the clip.


d.

Install the luggage compartment door outside garnish sub-assembly with the 4 nuts.


Hide 76801A 3.INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY (w/o Lock Cylinder)

a.

Install 5 new gaskets to the luggage compartment door outside garnish sub-assembly.


b.

Install a new clip to the luggage compartment door outside garnish sub-assembly.


c.

Engage the clip.


d.

Install the luggage compartment door outside garnish sub-assembly with the 5 nuts.


Hide 4.INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY (w/ Lock Cylinder)

a.
B358515

Install the luggage compartment door lock cylinder assembly with the 2 nuts.


b.

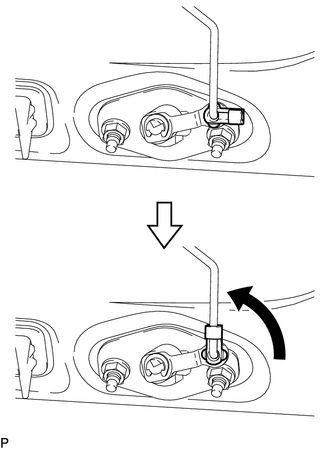

B358595
1.865,0.438 2.188,0.438 false 1.854,2.917 2.177,2.917 false 1.688,0.365 2,0.521 0.313,0.156 10 false *a 1.698,2.813 2.01,2.969 0.313,0.156 10 false *a
*a Luggage Compartment Door Lock Open Rod


Connect the luggage compartment door lock open rod as shown in the illustration.


Hide 5.INSTALL REAR LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>REAR LIGHT ASSEMBLY>INSTALLATION

Hide 6.INSTALL REAR LIGHT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.
