EXTERIOR PANELS / TRIM  REAR BUMPER  REMOVAL


PROCEDURE

Hide 1.REMOVE REAR BUMPER ASSEMBLY

a.

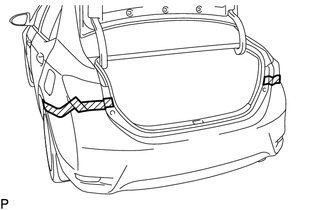

B373702
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the rear bumper assembly as shown in the illustration.


b.

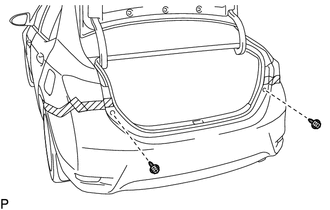

B373703

Remove the 2 screws.


c.

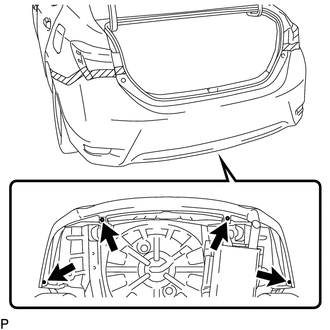

B356526

Using a clip remover, remove the 4 clips.


d.
B356527

Remove the clip and screw.

HINT:

Use the same procedure for the RH side and LH side.



e.

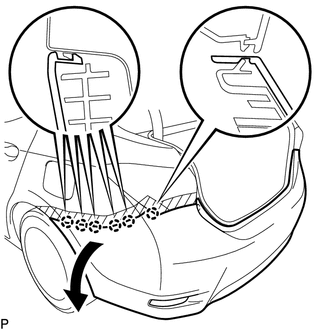

B372821

Disengage the 6 claws as shown in the illustration.

HINT:

Use the same procedure for the RH side and LH side.



f.

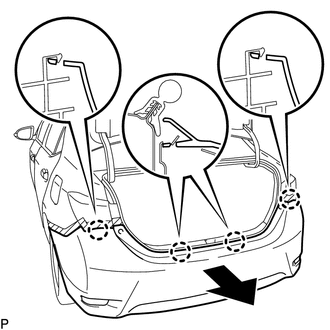

B373704

Disengage the 4 claws as shown in the illustration.


g.

Remove the rear bumper assembly.
