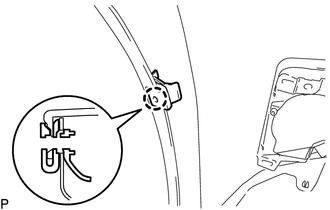

53879H 1.REMOVE FRONT FENDER LINER RETAINER

a.

Disengage the claw to remove the front fender liner retainer.

HINT:

Use the same procedure for the RH side and LH side.

81220 2.REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

81210A 3.REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

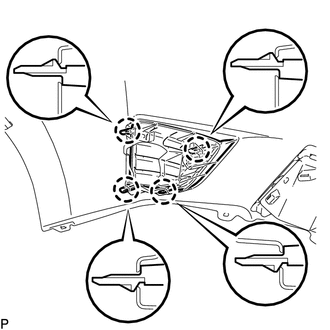

52128B 4.REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)

a.

Disengage the 4 claws to remove the front bumper hole cover LH.

52127D 5.REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

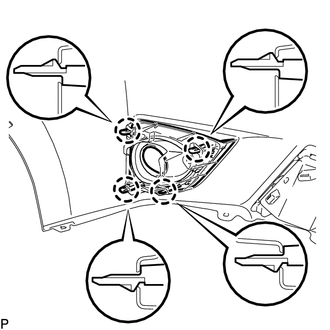

81482C 6.REMOVE FOG LIGHT COVER LH (w/ Fog Light)

a.

Disengage the 4 claws to remove the fog light cover LH.

81481E 7.REMOVE FOG LIGHT COVER RH (w/ Fog Light)

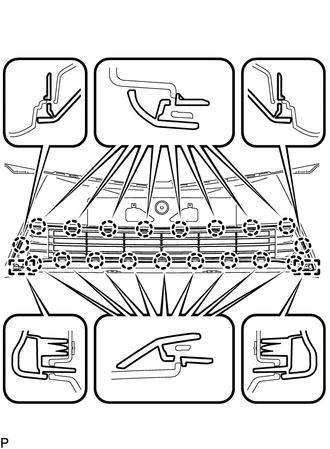

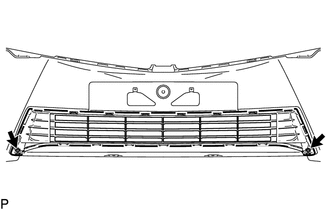

53112E 8.REMOVE LOWER NO. 1 RADIATOR GRILLE

a.

Remove the 2 screws.

b.

Disengage the 19 claws and 2 guides to remove the lower No. 1 radiator grille.

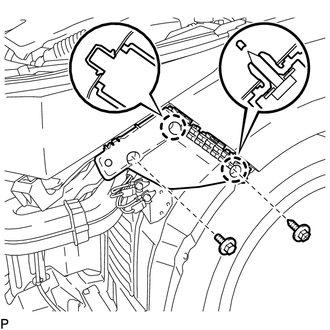

52116A 9.REMOVE FRONT BUMPER SIDE SUPPORT LH

a.

2.135,2.823 2.354,2.604 false 3.177,2.781 3.177,2.5 false 1.979,2.771 2.323,3.042 0.344,0.271 10 false *a 3.125,2.813 3.427,3.135 0.302,0.323 10 false *b

*a	Bolt
*b	Screw

Remove the bolt and screw.

b.

Disengage the 2 claws to remove the front bumper side support LH.

52115A 10.REMOVE FRONT BUMPER SIDE SUPPORT RH

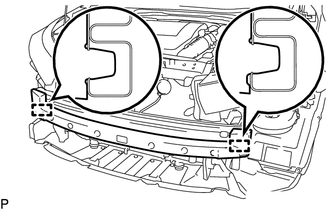

52611 11.REMOVE FRONT BUMPER ENERGY ABSORBER

a.

Disengage the 2 guides to remove the front bumper energy absorber.

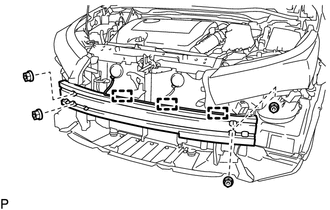

52131A 12.REMOVE FRONT BUMPER REINFORCEMENT

a.

Disengage each clamp.

b.

Remove the 4 nuts and front bumper reinforcement.
