HORN  HORN  REMOVAL


PROCEDURE

Hide 53141 1.REMOVE RADIATOR COVER

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE>REMOVAL

Hide 2.REMOVE RADIATOR GRILLE SUB-ASSEMBLY

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>RADIATOR GRILLE>REMOVAL

Hide 86510 3.REMOVE HIGH PITCHED HORN ASSEMBLY

a.

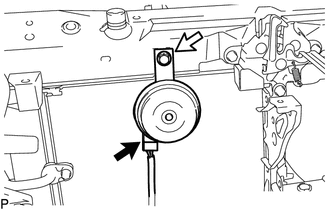

B360304

Disconnect the connector.


b.

Remove the bolt and high pitched horn assembly.


Hide 86520 4.REMOVE LOW PITCHED HORN ASSEMBLY

a.

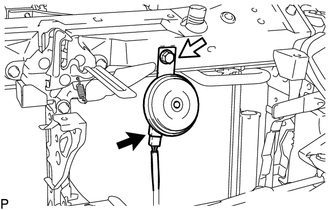

B360305

Disconnect the connector.


b.

Remove the bolt and low pitched horn assembly.
