HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL  REASSEMBLY


PROCEDURE

Hide 55901D 1.INSTALL NO. 1 HEATER CONTROL SUB-ASSEMBLY

a.

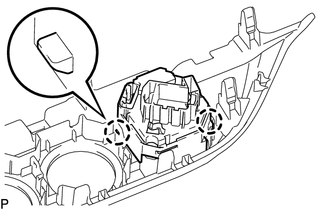

E282379

Engage the 2 claws to install the No. 1 heater control sub-assembly.


Hide 55902E 2.INSTALL NO. 2 HEATER CONTROL SUB-ASSEMBLY

a.

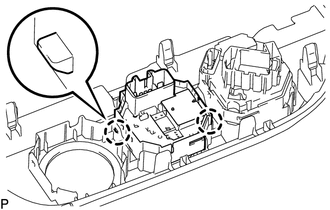

E282378

Engage the 2 claws to install the No. 2 heater control sub-assembly.


Hide 55903A 3.INSTALL NO. 3 HEATER CONTROL SUB-ASSEMBLY

a.

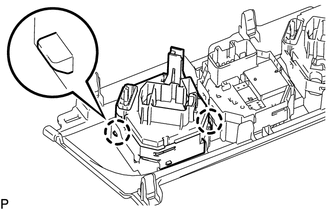

E282377

Engage the 2 claws to install the No. 3 heater control sub-assembly.
