2NZ-FE EMISSION CONTROL PURGE VALVE REMOVAL
PROCEDURE
25860
1.REMOVE PURGE VALVE (PURGE VSV)
a.
0.896,0.25 1.125,0.25
1.125,0.25 1.563,0.906
true
1.292,2.042 1.479,2.042
1.479,2.042 2.063,1.698
true
2.271,0.792 2.594,0.208
2.594,0.208 2.833,0.208
true
0.667,0.146 0.948,0.385
0.281,0.24
10
true
*1
1.094,1.948 1.344,2.156
0.25,0.208
10
true
*2
2.896,0.135 3.156,0.406
0.26,0.271
10
true
*3

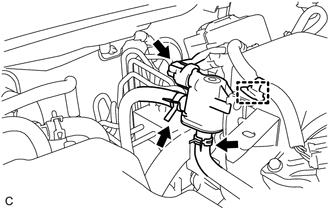

| *1 | No. 1 Fuel Vapor Feed Hose |
| *2 | No. 2 Fuel Vapor Feed Hose |
| *3 | Purge Valve (Purge VSV) |
Disconnect the purge valve (purge VSV) connector.
b.
Disengage the wire harness clamp from the purge valve (purge VSV).
c.
Slide the 2 clips and disconnect the No. 1 fuel vapor feed hose and No. 2 fuel vapor feed hose from the purge valve (purge VSV).
d.
Remove the purge valve (purge VSV) from the air cleaner cap sub-assembly.
