2ZR-FE INTAKE / EXHAUST  VACUUM SWITCHING VALVE(for ACIS)  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 25860 2.REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

a.

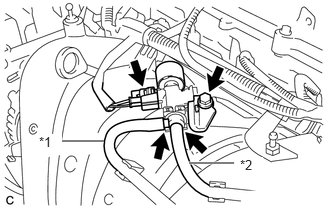

A235777C02
1.969,1.698 2.438,1.698 true 0.615,1.469 1.083,1.469 true 0.406,1.396 0.646,1.615 0.24,0.219 10 true *1 2.5,1.635 2.74,1.844 0.24,0.208 10 true *2
*1 Vacuum Hose
*2 No. 2 Air Hose


Disconnect the No. 1 vacuum switching valve assembly (for ACIS) connector.


b.

Disconnect the No. 2 air hose and vacuum hose from the No. 1 vacuum switching valve assembly (for ACIS).


c.

Remove the bolt and No. 1 vacuum switching valve assembly (for ACIS) from the intake manifold.


d.

Remove the screw and vacuum switching valve bracket from the No. 1 vacuum switching valve assembly (for ACIS).
