1ZR-FE INTAKE / EXHAUST  EXHAUST PIPE  REMOVAL


PROCEDURE

Hide 17430 2.REMOVE TAIL EXHAUST PIPE ASSEMBLY

a.

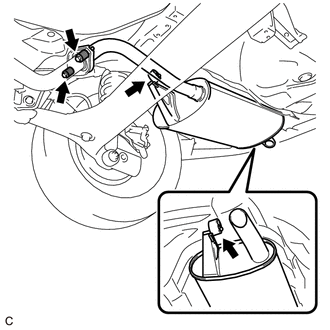

A312906

Remove the 2 bolts and 2 compression springs.


b.

Remove the tail exhaust pipe assembly from the 2 exhaust pipe supports.


c.

Remove the gasket from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).


Hide 17410 3.REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst)

a.

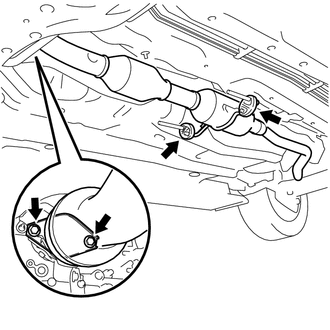

A312888

Remove the 2 bolts and 2 compression springs.


b.

Remove the front exhaust pipe assembly (TWC: Front and Rear Catalyst) from the 2 exhaust pipe supports.


c.

Remove the gasket from the exhaust manifold.
