2ZR-FE EMISSION CONTROL  PURGE VALVE  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 17650G 2.REMOVE PURGE VALVE (PURGE VSV)

a.

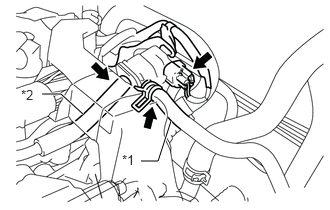

A312900C01
1.781,1.26 1.646,1.677 1.646,1.677 1.469,1.677 true 0.438,0.979 0.635,0.979 0.635,0.979 0.865,1.188 true 1.271,1.583 1.469,1.771 0.198,0.188 10 true *1 0.219,0.906 0.406,1.115 0.188,0.208 10 true *2
*1 No. 1 Fuel Vapor Feed Hose
*2 No. 2 Fuel Vapor Feed Hose


Disconnect the purge valve (purge VSV) connector.


b.

Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).


c.

Disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).


d.

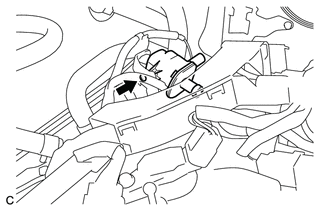

A173007

Remove the screw and purge valve (purge VSV) from the air tube.
