1ZR-FE EMISSION CONTROL  PCV VALVE  INSTALLATION


PROCEDURE

Hide 12204 1.INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

a.
A092670C09
2.281,0.646 2.125,0.188 2.125,0.188 1.865,0.188 false 1.667,0.104 1.854,0.302 0.188,0.198 10 false *a

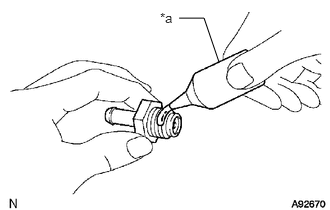

*a Adhesive


Apply adhesive to 2 or 3 threads of the PCV valve (ventilation valve sub-assembly).

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent



b.

Using a 22 mm ball joint lock nut wrench, install the PCV valve (ventilation valve sub-assembly) to the ventilation case.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:
·

Use the torque value compensation formula to calculate the torque value for use when a torque wrench is combined with a tool such as a ball joint lock nut wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

Do not start the engine for at least 1 hour after installation.




c.

Connect the ventilation hose to the PCV valve (ventilation valve sub-assembly) and slide the clip to secure it.
