1ZR-FE EMISSION CONTROL FUEL TANK CAP INSPECTION
PROCEDURE
77310A
1.INSPECT FUEL TANK CAP ASSEMBLY
a.
2.417,1.26 2.719,1.604
2.719,1.604 2.875,1.604
false
2.969,1.51 3.281,1.708
0.313,0.198
10
false

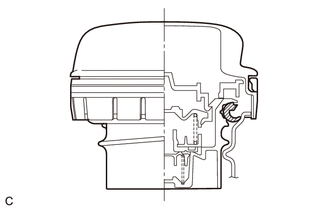

*a
| *a | Gasket |
Visually check if the fuel tank cap assembly and gasket are deformed or damaged.
If necessary, replace the fuel tank cap assembly.
