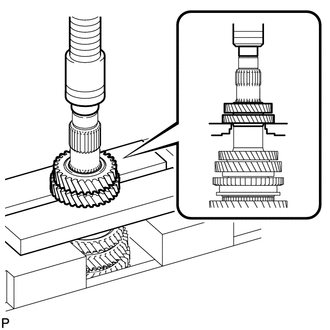

Using SST and a press, remove the rear output shaft bearing and 6th driven gear from the output shaft.

SST

09527-21011
09950-60010  (09951-00290)
09950-70010  (09951-07100)

NOTICE:

Support the output shaft by hand to prevent it from dropping.

Remove the output gear spacer from the output shaft.

0.417,2.063 0.417,3.188 0.417,3.188 0.76,3.188 true 0.604,2.552 0.604,3.177 true 0.729,1.104 0.51,1.104 false 2.469,0.531 2.24,0.531 false 2.271,1.281 2.271,0.948 2.271,0.948 2.198,0.948 false 2.969,0.958 2.885,0.958 2.885,0.958 2.885,1.271 false 0.823,3.104 1.198,3.313 0.375,0.208 10 false SST 0.208,1.021 0.583,1.229 0.375,0.208 10 false SST 1.938,0.448 2.26,0.656 0.323,0.208 10 false SST 1.885,0.875 2.198,1.083 0.313,0.208 10 false SST 3.01,0.875 3.323,1.083 0.313,0.208 10 false SST

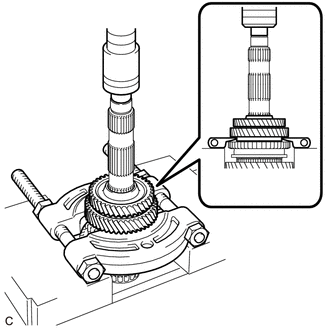

Using SST and a press, remove the 5th driven gear and 4th driven gear from the output shaft.

SST

09527-21011
09950-60010  (09951-00290)

NOTICE:

Support the output shaft by hand to prevent it from dropping.

Remove the output gear spacer from the output shaft.

0.823,1.927 0.552,1 0.552,1 1.146,1 false 2.438,0.323 2.604,0.323 false 3.115,1.865 2.25,1.865 2.25,1.865 2.25,1.542 false 3.125,1.927 3.125,1.542 false 0.229,0.927 0.688,1.125 0.458,0.198 10 false SST 2.156,0.24 2.615,0.438 0.458,0.198 10 false SST 3,1.958 3.365,2.208 0.365,0.25 10 false SST

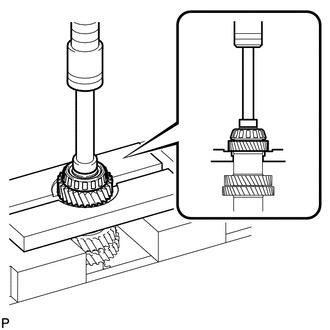

Using SST and a press, remove the 3rd driven gear and 2nd gear from the output shaft.

SST

09950-00020
09950-60010  (09951-00290)

NOTICE:

·

Do not tighten SST excessively.

·

Support the output shaft by hand to prevent it from dropping.

Remove the 2nd gear needle roller bearing from the output shaft.

Remove the inner 2nd gear bearing race from the output shaft.

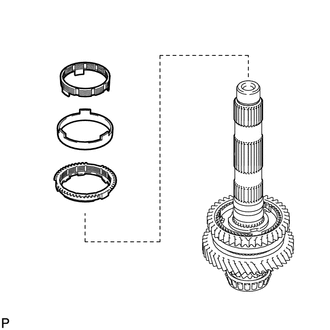

Remove the No. 1 synchronizer ring set (for 2nd gear) from the reverse gear.

Remove the reverse gear from the No. 1 transmission clutch hub.

Remove the 3 No. 1 synchromesh shifting keys from the No. 1 transmission clutch hub.

Remove the No. 1 transmission clutch hub from the output shaft.

Remove the No. 1 synchronizer ring set (for 1nd gear) from the 1st gear.

Remove the 1st gear from the output shaft.

Remove the 1st gear needle roller bearing from the output shaft.

Remove the 1st gear bushing from the output shaft.

0.844,1.906 0.646,1.125 0.646,1.125 1.115,1.125 false 0.656,1.125 1.104,1.99 false 2.438,0.646 2.625,0.646 false 2.615,1.24 2.49,1.24 2.49,1.24 2.49,0.646 false 3.063,1.906 2.313,1.906 2.313,1.906 2.313,1.5 false 3.063,1.5 3.063,1.969 false 0.313,1.042 0.771,1.24 0.458,0.198 10 false SST 2.146,0.573 2.604,0.771 0.458,0.198 10 false SST 2.938,1.99 3.396,2.188 0.458,0.198 10 false SST

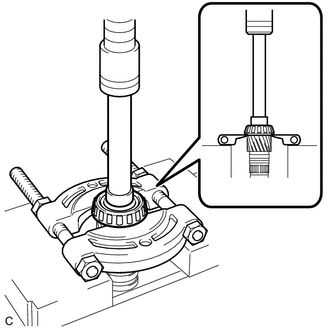

Using SST and a press, remove the front output shaft bearing from the output shaft.

SST

09950-00020
09950-60010  (09951-00290)
09950-70010  (09951-07100)

NOTICE:

·

Do not tighten SST excessively.

·

Support the output shaft by hand to prevent it from dropping.
