WIPER / WASHER  RAIN SENSOR  INSTALLATION


PROCEDURE

Hide 89944 1.INSTALL RAIN SENSOR TAPE

HINT:

Rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated.


a.

Clean the rain sensor sensing portion with a piece of cloth, etc.


b.
E189310
1.542,0.542 1.698,0.74 0.156,0.198 10 A 0.833,2.25 0.99,2.448 0.156,0.198 10 B
V100155

Rain Sensor Tape


Peel off the smaller release sheet, and then attach the rain sensor tape to the rain sensor sensing portion as shown in the illustration.

Standard Clearance:
Area Measurement
A 7.25 mm (0.285 in.)
B 13.5 mm (0.531 in.)


NOTICE:

Use your fingers to push out any air bubbles from under the tape.



Hide 89941 2.INSTALL RAIN SENSOR

a.

Clean the windshield glass with a piece of cloth, etc.

NOTICE:
·

Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.


·

If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.




b.

When installing a new rain sensor or replacing the rain sensor tape:

i.

Peel off the release sheet.

HINT:

Do not touch the silicone coated surfaces.




c.

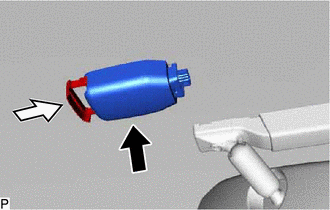

E284251
0.646,1.656 0.792,1.135 true 0.521,1.677 0.833,1.833 0.313,0.156 10 true *a 1.625,1.531 1.781,1.729 0.156,0.198 10 true 1 0.219,0.771 0.375,0.969 0.156,0.198 10 true 2
*a Stopper


Gradually attach the rain sensor to the glass surface to prevent air bubbles from forming between them.

HINT:

Do not touch the silicone coated or glass surfaces.



d.

Push in the stopper to install the rain sensor.


e.

Connect the connector.


Hide 89943 3.INSTALL RAIN SENSOR COVER

a.

Engage the 2 claws to connect the rain sensor cover.


b.

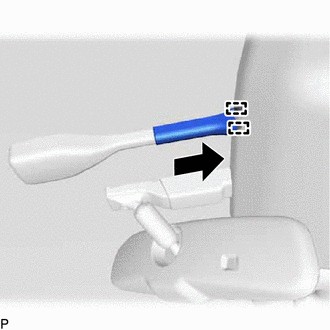

E284252

Engage the 2 guides to install the rain sensor cover as shown in the illustration.
