2.458,0.917 2.875,0.656 true 0.313,2.208 0.625,2.365 0.313,0.156 10 false *a 2.917,0.531 3.229,0.688 0.313,0.156 10 false *b

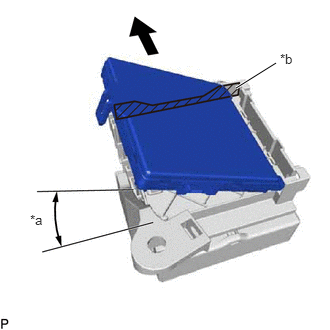

*a	20° or more
*b	Housing Sidewall

Set the main body ECU (multiplex network body ECU) to the position where the guide of the main body ECU (multiplex network body ECU) contacts the housing sidewall of the instrument panel junction block assembly as shown in the illustration.

HINT:

Make sure to keep the angle at 20° or more as shown in the illustration.

0.885,0.219 1.552,0.823 true 0.708,0.115 1.021,0.271 0.313,0.156 10 false *a

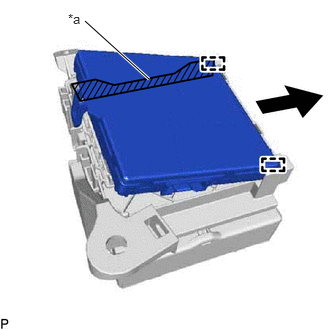

*a	Housing Sidewall

Slide the main body ECU (multiplex network body ECU) along the housing sidewall as shown in the illustration and engage the 2 guides.

2.469,0.802 2.885,0.542 false 2.917,0.406 3.229,0.563 0.313,0.156 10 false *a

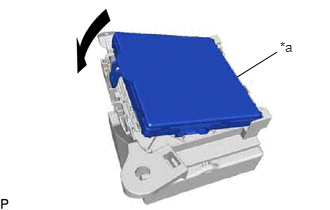

*a

Side A

While keeping the main body ECU (multiplex network body ECU) in contact with side A of the instrument panel junction block assembly (axis of rotation), lower it as shown in the illustration.

0.802,0.344 1.479,0.708 true 0.458,1.885 1.208,1.885 true 0.333,1.844 0.333,2.052 0.333,2.052 1.208,2.052 true 1.24,1.813 1.552,1.969 0.313,0.156 10 false *1 1.26,1.99 1.573,2.146 0.313,0.156 10 false *2 0.604,0.229 0.917,0.385 0.313,0.156 10 false *a

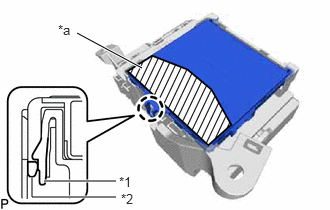

*1	Instrument Panel Junction Block Assembly
*2	Main Body ECU (Multiplex Network Body ECU)
*a	Push Area

Press the push area until the claw engages to install the main body ECU (multiplex network body ECU).

NOTICE:

·

Make sure to press only the push area.

·

Confirm the engagement of the main body ECU (multiplex network body ECU) and instrument panel junction block assembly by listening for the click sound of the lock engaging.

HINT:

If a click sound cannot be heard, visually check the engagement of the lock. The engagement can also be confirmed if the main body ECU (multiplex network body ECU) and instrument panel junction block assembly are flush.

0,0 0,0 false

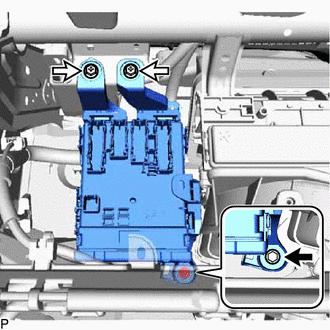

	Bolt
	Screw

Install the instrument panel junction block assembly with main body ECU with the bolt and 2 screws.

Torque:

Bolt : 8.0 N*m (82 kgf*cm, 71 in.*lbf)

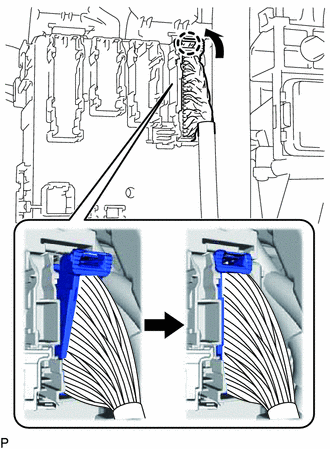

Connect the connector and raise the lock lever to engage the claw and lock the connector as shown in the illustration.

NOTICE:

Be sure to connect the connector securely.

w/ Connector Lock:

i.

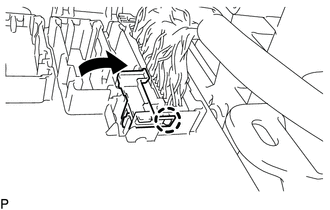

Engage the claw to lock the connector lock as shown in the illustration.

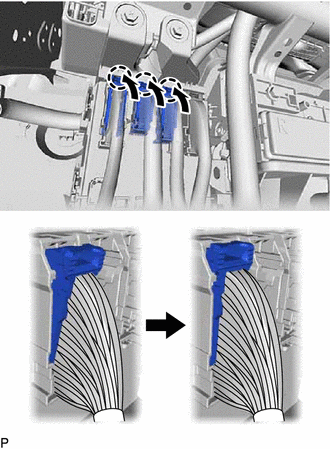

Connect the 3 connectors and raise the 3 lock levers to engage the 3 claws and lock the 3 connectors as shown in the illustration.

NOTICE:

Be sure to connect the connectors securely.
