BRAKE SYSTEM (OTHER)  BRAKE BOOSTER  REASSEMBLY


PROCEDURE

Hide 44730 1.INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

a.
C269606
2.844,0.792 3.156,0.948 0.313,0.156 10 *a
*a 20° +/- 20°
V100136

Up


Install a new check valve grommet to the brake booster assembly.


b.

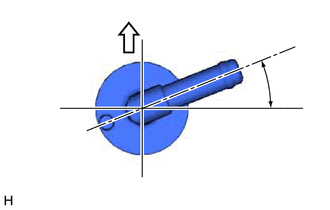

Install the brake vacuum check valve assembly to the brake booster assembly as shown in the illustration.
