BRAKE SYSTEM (OTHER)  BRAKE MASTER CYLINDER  REASSEMBLY


PROCEDURE

Hide 47299 1.INSTALL BRAKE MASTER CYLINDER RESERVOIR STRAINER

Hide 47230 2.INSTALL BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

Hide 47255 3.INSTALL MASTER CYLINDER RESERVOIR GROMMET

a.

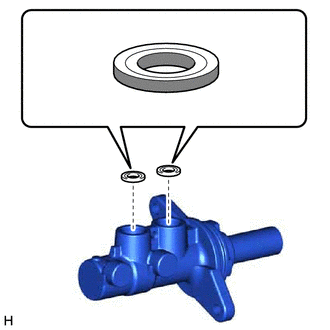

C281058
1.177,0.635 1.271,0.76 0.094,0.125 6 false '
V100144

Lithium Soap Base Glycol Grease


Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new master cylinder reservoir grommets.


b.

Install the 2 master cylinder reservoir grommets to the brake master cylinder body.


Hide 47220D 4.INSTALL BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

a.

Secure the brake master cylinder body in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder body.



b.

Temporarily install the brake master cylinder reservoir assembly to the brake master cylinder body.


c.

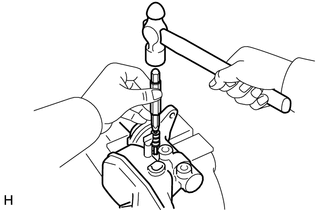

C292622

Using a 5 mm pin punch and a hammer, tap in the brake master cylinder ring pin to secure the brake master cylinder reservoir assembly.


d.

Remove the brake master cylinder sub-assembly from the vise.
