BRAKE SYSTEM (OTHER) BRAKE MASTER CYLINDER INSPECTION

PROCEDURE

Hide Display 1.INSPECT AND ADJUST BRAKE BOOSTER PUSH ROD

NOTICE:: Make the adjustment with no vacuum in the brake booster assembly. (Depress the brake pedal several times with the engine stopped.)

HINT:: ·

Adjustment of the brake booster push rod is required when the brake master cylinder sub-assembly is replaced with a new one.; ·

Adjustment is not necessary when the removed brake master cylinder sub-assembly is reused and the brake booster assembly is replaced with a new one.

Apply chalk to the tip of the accessory tool.

HINT:: The accessory tool is included with a new brake master cylinder sub-assembly.

1.917,1.25 1.917,1.583 false 2.448,1.01 2.448,1.635 false 1.854,1.594 2.375,1.906 0.521,0.313 10 *a 2.396,1.646 2.875,1.844 0.479,0.198 10 *b

*a	Accessory Tool
*b	Brake Booster Push Rod

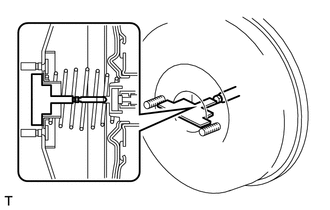

Place the accessory tool on the brake booster assembly.

Measure the clearance between the brake booster push rod and accessory tool.

Standard Clearance:: 0 mm (0 in.)

HINT:: Adjust the clearance in the following cases:

If there is clearance between the accessory tool and the shell of the brake booster (the accessory tool does not contact the body of the brake booster), the brake booster push rod is protruding too far.

If the chalk does not stick on the tip of the brake booster push rod, the brake booster push rod protrusion length is insufficient.

0.656,0.635 1.125,0.521 true 0.281,0.552 0.875,0.771 0.594,0.219 10 false SST

If the clearance is not as specified, adjust the brake booster push rod length by holding the brake booster push rod using SST and turning the tip of the brake booster push rod using a 7 mm socket driver.

SST: 09737-00020

HINT:: Check the brake booster push rod clearance again after adjustment.
