TROUBLESHOOTING PRECAUTION

NOTICE:

·

Since the brake lines are critical safety related parts, be sure to disassemble and inspect the components if a brake fluid leak is found. If any abnormalities are found, replace the component with a new one.

·

When removing brake components, cover the brake line connections to prevent foreign matter such as dust or dirt from entering the lines.

·

Do not damage or deform the brake lines during the removal and installation procedures.

·

When installing a grommet to the vehicle body, ensure that the brake line passes through the center of the grommet.

·

When installing a brake line or flexible hose, ensure that they are free from twists or kinks.

·

Do not deform the bracket or the body when connecting a brake line and flexible hose.

·

If the metal end of a flexible hose does not match the groove on the bracket, twist the hose slightly to insert it.

·

Flexible hoses must be free from shock absorber oil, grease, etc.

·

When installing a brake line to a plastic clamp, ensure that the brake line is not loose or pinched.

·

Do not reuse any clips or plastic clamps removed from a flexible hose.

·

After installing a brake line or flexible hose, ensure that they do not interfere with any other components or vehicle body.

·

Do not allow brake fluid on any painted vehicle body surface. If brake fluid leaks onto any painted surface, immediately wash it off.

DISCONNECTING AND CONNECTING FLEXIBLE HOSE AND BRAKE LINE

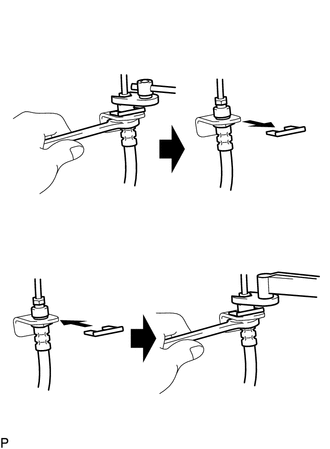

a.

0.958,1.396 0.958,1.771 false 1.74,0.896 1.583,0.5 1.583,0.5 1.083,0.5 false 2.198,3.479 2.198,4.042 false 3,3.063 3,3.521 false 1.417,1.75 1.5,2.083 1.5,2.083 1.667,2.083 false 0.844,0.833 1.26,0.833 false 3,1.396 3,1.771 false 1.083,3.479 1.083,3.854 false 0.073,0.073 0.406,0.323 0.333,0.25 10 false *a 0.115,2.427 0.51,2.698 0.396,0.271 10 false *b 0.906,1.781 1.323,2.073 0.417,0.292 10 false *c 0.917,0.417 1.354,0.74 0.438,0.323 10 false *d 2.135,4.042 2.635,4.333 0.5,0.292 10 false *c 2.927,3.521 3.281,3.854 0.354,0.333 10 false *d 0.698,0.75 1.135,1.073 0.438,0.323 10 false *f 1.698,2 2.135,2.323 0.438,0.323 10 false *e 2.917,1.76 3.354,2.083 0.438,0.323 10 false *g 1.031,3.875 1.469,4.198 0.438,0.323 10 false *g

*a	Disconnecting
*b	Connecting
*c	Hold
*d	Turn
*e	Flexible Hose
*f	Brake Line
*g	Clip

Disconnecting:

i.

Hold the flexible hose with a wrench and disconnect the brake line using a union nut wrench without deforming the brake line.

ii.

Remove the clip and disconnect the flexible hose.

CONNECTING BRAKE LINE AND WAY

a.

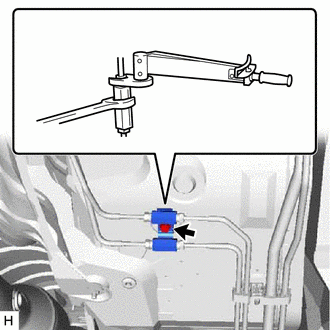

2.844,1.219 2.844,0.865 false 0.969,1.083 0.854,0.74 0.854,0.74 0.698,0.74 false 1.719,2.958 1.719,2.604 true 0.521,0.656 0.833,0.813 0.313,0.156 10 false *a 2.771,1.24 3.083,1.396 0.313,0.156 10 false *b 1.646,2.979 1.854,3.167 0.208,0.188 10 true *c

*a	Hold
*b	Turn
*c	Way

Support the way to prevent deformation of the brake line and connect the brake line to the way with a union nut wrench.
