2NZ-FE ENGINE CONTROL  SFI SYSTEM  CHECK MODE PROCEDURE


HINT:

Compared to normal mode, check mode is more sensitive to the malfunctions. Therefore, check mode can detect the malfunctions that cannot be detected by normal mode.


NOTICE:

All the stored DTCs and freeze frame data are cleared if: 1) the ECM is changed from normal mode to check mode or vice versa; or 2) the ignition switch is turned from ON to ACC or off while in check mode. Before changing modes, always check and make a note of any DTCs and freeze frame data.


CHECK MODE PROCEDURE


a.

Check and ensure the following conditions:

i.

Battery positive voltage is 11 V or higher.


ii.

Throttle valve is fully closed.


iii.

Shift lever is in P or N.


iv.

A/C is off.



b.

Turn the ignition switch off.


c.

Connect the GTS to the DLC3.


d.

Turn the ignition switch to ON.


e.

Turn the GTS on.


f.

Enter the following menus: Powertrain / Engine and ECT / Utility / Check Mode.

Powertrain > Engine and ECT > Utility
Tester Display
Check Mode
50005 234 1

g.

Switch the ECM from normal mode to check mode.


h.

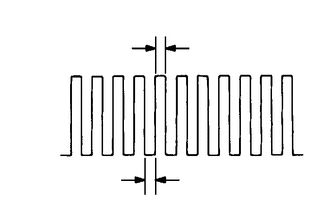

A283579
0.26,0.76 0.573,0.958 0.313,0.198 10 ON 0.25,1.313 0.708,1.563 0.458,0.25 10 OFF 2.031,0.417 2.948,0.635 0.917,0.219 10 0.13 seconds 1.927,1.792 2.844,2.01 0.917,0.219 10 0.13 seconds

Make sure that the MIL flashes as shown in the illustration.


i.

Start the engine.


j.

Make sure that the MIL turns off.


k.

Duplicate the conditions of the malfunction described by the customer.


l.

Check for DTCs and freeze frame data using the GTS.

Powertrain > Engine and ECT > Trouble Codes
50001 234
