1.063,1.292 1.063,1.844 true 1,1.823 1.167,1.979 0.167,0.156 10 false *a

*a	Cutout
	Front of the Vehicle
	Inside of the Vehicle

Install the front stabilizer bar bushing LH to the front stabilizer bar as shown in the illustration.

NOTICE:

When installing the front stabilizer bar bushing LH, make sure that the cutout is facing the rear of the vehicle.

1.208,1.531 1.573,1.531 true 1.052,1.458 1.365,1.615 0.313,0.156 10 false *a

*a	Elongated Hole
	Rear of the Vehicle
	Inside of the Vehicle

Install the front No. 1 stabilizer bracket LH to the front stabilizer bar bushing LH as shown in the illustration.

NOTICE:

Make sure to install the front No. 1 stabilizer bracket LH with its elongated hole facing the rear of the vehicle.

1.604,1.74 1.76,1.906 0.156,0.167 10 true B 2.302,2.292 2.458,2.49 0.156,0.198 10 true A 3.104,1.635 3.26,1.833 0.156,0.198 10 true A 2.031,1.208 2.167,1.375 0.135,0.167 10 true B

Front of the Vehicle

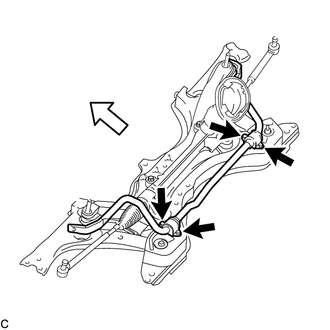

Install the front stabilizer bar with 2 front stabilizer bar bushings and 2 front No. 1 stabilizer brackets to the front suspension crossmember sub-assembly with the 4 bolts.

Torque:

19 N*m (194 kgf*cm, 14 ft.*lbf)

NOTICE:

Temporarily tighten the 2 bolts (A) and then fully tighten the 4 bolts in the order of (B) and (A).
