BRAKE (FRONT)  FRONT BRAKE FLEXIBLE HOSE  INSTALLATION


CAUTION / NOTICE / HINT

NOTICE:
·

Because the left and right front flexible hoses are not interchangeable, verify the part number when installing the front flexible hoses.

·

If the front flexible hoses are to be reused, connect them after checking the identification marks placed when each hose was disconnected.



HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 47313J 1.INSTALL FRONT FLEXIBLE HOSE

NOTICE:

When installing the front flexible hose, minimize twisting of the hose.


a.

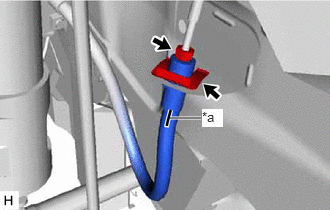

C289213C01
1.771,1.229 2.094,1.229 true 2.104,1.135 2.323,1.323 0.219,0.188 10 true *a
*a Identification Mark


Install a new clip to the front flexible hose.

NOTICE:
·

Install the clip as far as it will go.

·

When installing the front flexible hose, face the identification mark to the outside of the vehicle.




b.

Using a union nut wrench, connect the brake line to the front flexible hose while holding the front flexible hose with a wrench.

Torque:
15.2 N*m (155 kgf*cm, 11 ft.*lbf)

NOTICE:
·

Do not kink or damage the brake line.

·

Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

·

Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION




c.

w/ ABS:

i.

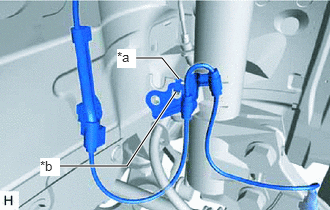

C290746C01
0.625,1.729 1.323,1.729 1.323,1.729 1.833,0.958 true 1.406,0.604 1.688,0.604 1.688,0.604 1.865,0.823 true 1.219,0.51 1.417,0.708 0.198,0.198 10 true *a 0.417,1.646 0.625,1.833 0.208,0.188 10 true *b
*a Hook
*b Claw


Engage the hook and claw to install the front speed sensor clamp to the flexible hose bracket.

NOTICE:

Do not twist the front speed sensor wire harness when installing it.




d.

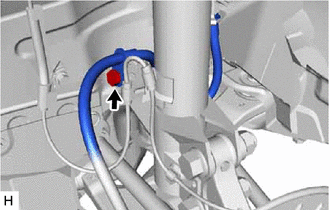

C289214

Install the front flexible hose to the absorber bracket with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:
w/ ABS:

The bolt tightens the front flexible hose and front speed sensor together. Make sure that the front flexible hose is positioned over the front speed sensor.



Hide 47313J 2.CONNECT FRONT FLEXIBLE HOSE

a.

Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)

NOTICE:

Install the front flexible hose lock securely into the lock hole in the front disc brake cylinder assembly.



Hide 4.INSTALL FRONT WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION
